FG-R05-3A
FLUX GATE TYPE RESIDUAL CURRENTManufacturer: KEMET
Categories: Current Sensors
Quality Control: Learn More

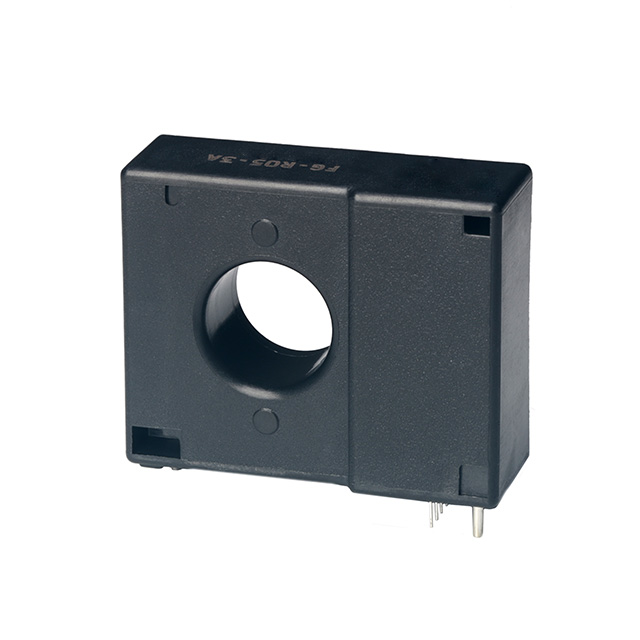

KEMET FG Series Flux Gate Residual Current Sensor, part number FG-R05-3A. This open-loop, bidirectional module utilizes flux gate technology for accurate current sensing. Designed for single pass-through mounting, it operates with a supply voltage of 4.75V to 5.25V, drawing a typical supply current of 13mA. The sensor is specified for sensing currents up to 50mA and is suitable for AC/DC measurements, operating at a frequency of 55Hz. It provides a ratiometric voltage output with a sensitivity of 40V/A. The response time is 250ms for AC and 1s for DC. Operating temperature range is -40°C to 85°C. Applications include industrial automation and power systems where precise residual current detection is critical.
Additional Information
Series: FGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 40V/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 55Hz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 250ms (AC), 1s (DC) |
| Sensor Type | Flux Gate, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 13mA (Typ) |
| Current - Sensing | 50mA |
| Number of Channels | 1 |
