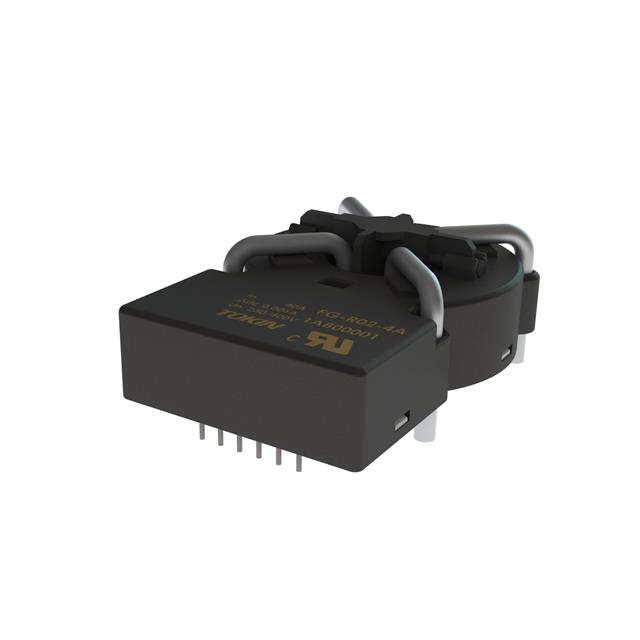

FG-R02-4A
FLUX GATE TYPE RESIDUAL CURRENTManufacturer: KEMET
Categories: Current Sensors
Quality Control: Learn More
KEMET's FG series flux gate current sensor, part number FG-R02-4A, offers precise sensing for AC and DC currents up to 50mA. This open-loop, bidirectional module features a single pass-through design for easy integration. Operating with a typical supply current of 13mA and a voltage range of 4.75V to 5.25V, the FG-R02-4A provides a ratiometric voltage output. Its flux gate technology delivers a sensitivity of 40V/A, suitable for applications requiring accurate current measurement at 55Hz. The component boasts a response time of 250ms for AC and 1s for DC, with an operating temperature range of -40°C to 105°C. This through-hole mountable module is widely utilized in industrial automation and power monitoring systems.
Additional Information
Series: FGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 40V/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 55Hz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 250ms (AC), 1s (DC) |
| Sensor Type | Flux Gate, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 13mA (Typ) |
| Current - Sensing | 50mA |
| Number of Channels | 1 |
