FG-R01-4A
FLUX GATE TYPE RESIDUAL CURRENTManufacturer: KEMET
Categories: Current Sensors
Quality Control: Learn More

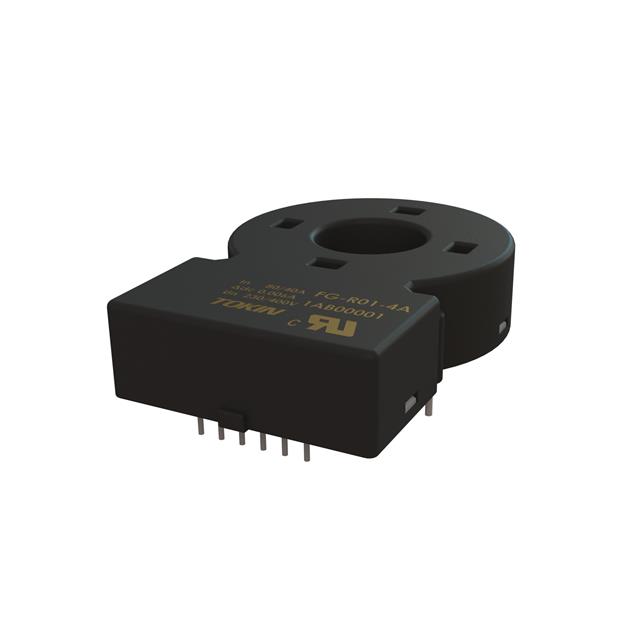

KEMET FG Series FG-R01-4A is a flux gate residual current sensor module designed for accurate bidirectional current measurement. This single pass-through, open-loop module operates with a supply voltage range of 4.75V to 5.25V and has a typical supply current of 13mA. It is capable of sensing AC current up to 50mA at 55Hz and DC current, offering a sensitivity of 40V/A. The output is ratiometric and voltage-based, with a response time of 250ms for AC and 1s for DC. The FG-R01-4A is suitable for applications requiring precise residual current detection in industrial automation, power monitoring, and electric vehicle systems. It features through-hole mounting and an operating temperature range of -40°C to 105°C.
Additional Information
Series: FGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 40V/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 55Hz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 250ms (AC), 1s (DC) |
| Sensor Type | Flux Gate, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 13mA (Typ) |
| Current - Sensing | 50mA |
| Number of Channels | 1 |
