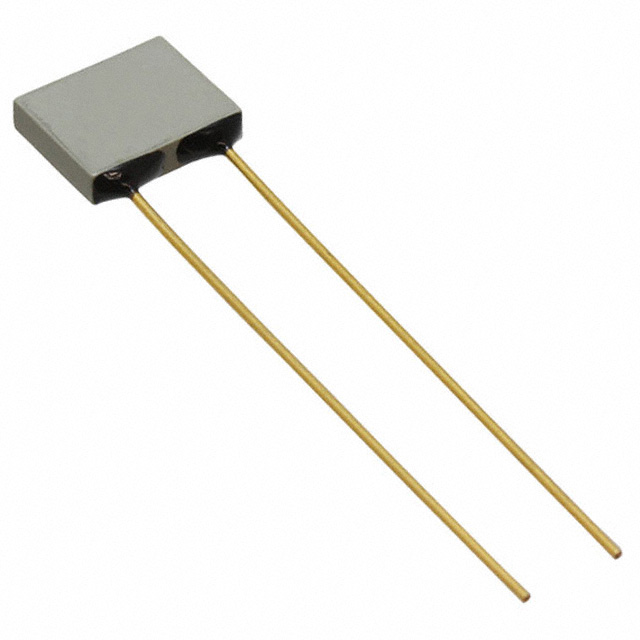

VCR40V102KGS
CAP CER 1000PF 3KV NP0 RADIALManufacturer: KEMET
Categories: Ceramic Capacitors
Quality Control: Learn More
1000 pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 Radial
Additional Information
Series: VCR Indust C0G HVHT200CRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | Straight |
| Features | High Voltage, High Temperature |
| Packaging | Bulk |
| Voltage - Rated | 3000V (3kV) |
| Package / Case | Radial |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.350"" L x 0.275"" W (8.89mm x 6.98mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C |
| Applications | General Purpose |
| Lead Spacing | 0.250"" (6.35mm) |
| Ratings | - |
| Height - Seated (Max) | 0.400"" (10.16mm) |
| Thickness (Max) | - |
| Failure Rate | - |
| Capacitance | 1000 pF |
Request a Quote
Clients Also Buy

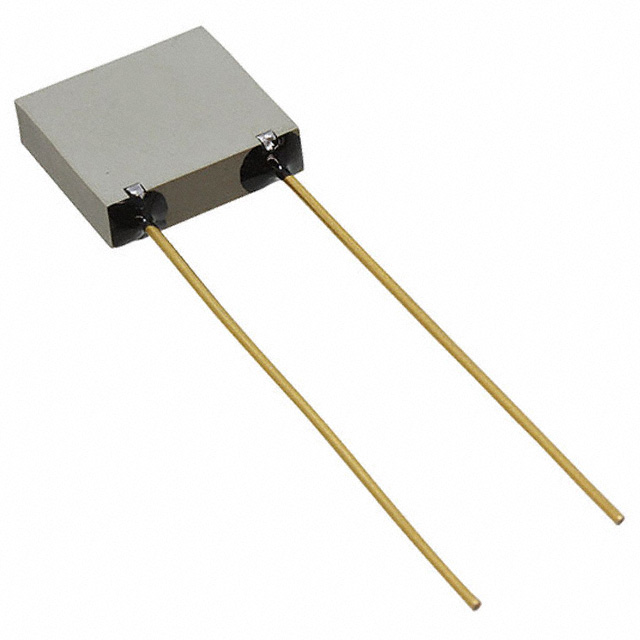

VCR60W392KGS
