CDR02BX472BKUS7185
CAP CER 4700PF 100V BX 1805Manufacturer: KEMET
Categories: Ceramic Capacitors
Quality Control: Learn More
KEMET CDR02BX472BKUS7185 is a military-grade ceramic capacitor from the CDR02 series, conforming to MIL-PRF-55681 specifications. This MLCC features a capacitance of 4700 pF with a ±10% tolerance and a 100V voltage rating. Designed for high-reliability applications, it operates within a temperature range of -55°C to 125°C, utilizing the BX temperature characteristic. The component is housed in an 1805 (4512 Metric) surface mount package, measuring 0.180" L x 0.050" W (4.57mm x 1.27mm), with a maximum thickness of 0.055" (1.40mm). This capacitor is supplied on tape and reel.
Additional Information
Series: Military, MIL-PRF-55681, CDR02RoHS Status: RoHS non-compliantManufacturer Lead Time: 38 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | - |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 100V |
| Package / Case | 1805 (4512 Metric) |
| Temperature Coefficient | BX |
| Size / Dimension | 0.180"" L x 0.050"" W (4.57mm x 1.27mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | High Reliability |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.055"" (1.40mm) |
| Failure Rate | S (0.001%) |
| Capacitance | 4700 pF |
Request a Quote
Clients Also Buy

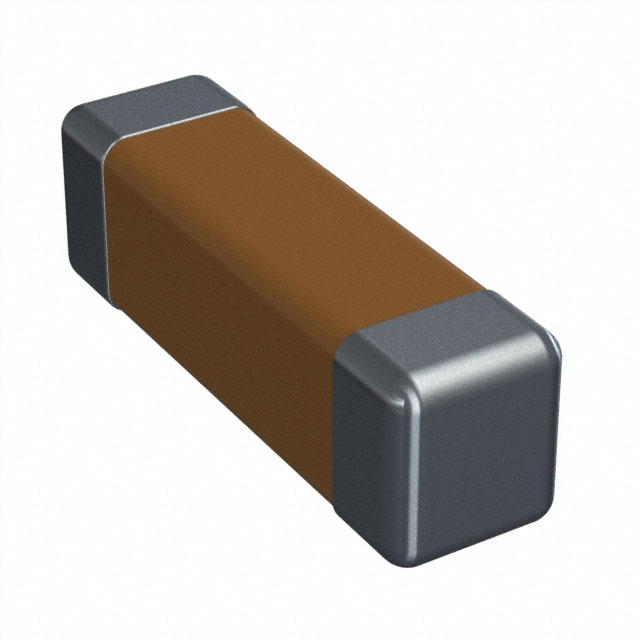

CDR02BX103BKURAJ
