CBR05C299AAGAC
2.90PF 250VManufacturer: KEMET
Categories: Ceramic Capacitors
Quality Control: Learn More

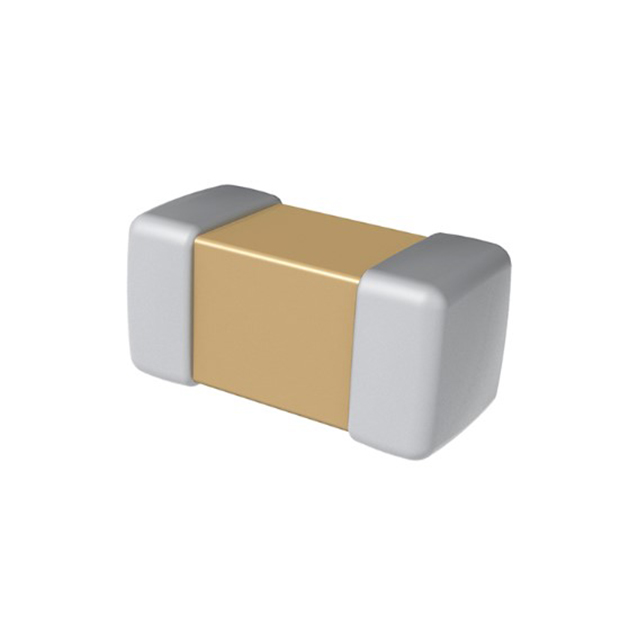

KEMET CBR05 SMD RF C0G Series ceramic capacitor, part number CBR05C299AAGAC. This MLCC component offers a capacitance of 2.9 pF with a tight tolerance of ±0.05pF and a voltage rating of 250V. Featuring a C0G (NP0) temperature coefficient, it provides excellent stability across its operating temperature range of -55°C to 125°C. The 0505 (1313 Metric) package size, measuring 1.40mm x 1.40mm, is designed for surface mount applications. Key features include high Q, low loss, and ultra-low ESR, making it suitable for demanding RF, microwave, and high-frequency applications. It is supplied on tape and reel.
Additional Information
Series: CBR05 SMD RF C0GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.05pF |
| Lead Style | - |
| Features | High Q, Low Loss, Ultra Low ESR |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 250V |
| Package / Case | 0505 (1313 Metric) |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.055"" L x 0.055"" W (1.40mm x 1.40mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | RF, Microwave, High Frequency |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.051"" (1.30mm) |
| Failure Rate | - |
| Capacitance | 2.9 pF |
