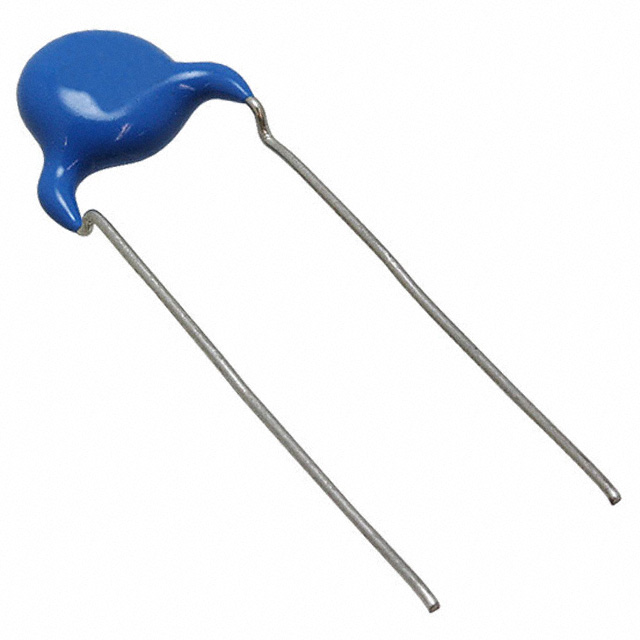

C921U152MVWDBA7317
CAP CER 1500PF 400VAC Y5U RADIALManufacturer: KEMET
Categories: Ceramic Capacitors
Quality Control: Learn More
KEMET C900AH SFTY X1-400 Y1-400 series radial ceramic capacitor, part number C921U152MVWDBA7317. This component features a capacitance of 1500 pF with a ±20% tolerance and a 400VAC rating. The dielectric material is Y5U (E), offering a temperature coefficient suitable for operation between -40°C and 125°C. With lead spacing of 0.394" (10.00mm) and a diameter of 0.354" (9.00mm), it is designed for through-hole mounting and includes formed, kinked leads. This capacitor is rated for X1 and Y1 safety applications, commonly found in power supplies and consumer electronics. The component is supplied in cut tape packaging.
Additional Information
Series: C900AH SFTY X1-400 Y1-400RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: Last Time BuyPackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | Formed Leads - Kinked |
| Features | - |
| Packaging | Cut Tape (CT) |
| Voltage - Rated | 400VAC |
| Package / Case | Radial, Disc |
| Temperature Coefficient | Y5U (E) |
| Size / Dimension | 0.354"" Dia (9.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| Applications | Safety |
| Lead Spacing | 0.394"" (10.00mm) |
| Ratings | X1, Y1 |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Failure Rate | - |
| Capacitance | 1500 pF |
Request a Quote
Clients Also Buy

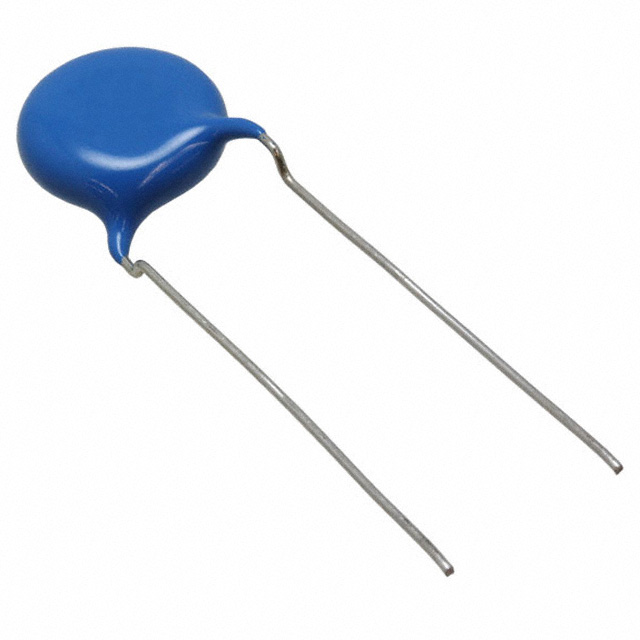

C951U472MVVDBA7317
