0166.00302.020401

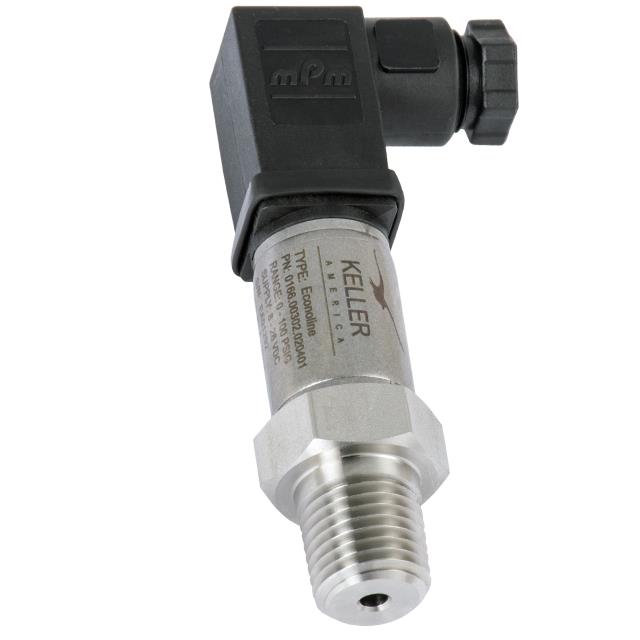

SENSOR 100PSIG 1/4""NPT .02AManufacturer: Keller America Inc
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 1/4"" (6.35mm) NPT 4 mA ~ 20 mA Cylinder, Threaded
Additional Information
Series: EconolineRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Box |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Current |
| Output | 4 mA ~ 20 mA |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 100°C |
| Termination Style | DIN |
| Voltage - Supply | 8V ~ 32V |
| Port Size | Male - 1/4"" (6.35mm) NPT |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 200PSI (1378.95kPa) |
