ZSM-S2808-W
LED WHITE DIFF SIDE VIEW SMD R/AManufacturer: JKL Components Corp.
Categories: LED Indication - Discrete
Quality Control: Learn More
JKL Components Corp. ZSM-S2808-W is a white diffused LED indicator designed for surface mount, right-angle applications. This discrete LED features a J-lead package (2-SMD) and is supplied on tape and reel. With a typical forward voltage of 3.2V and a test current of 20mA, it achieves a luminous intensity of 1200mcd. The component has a 120° viewing angle and a diffused lens for broad illumination. Its compact dimensions of 2.50mm L x 1.20mm W and a maximum height of 0.80mm make it suitable for space-constrained designs. This LED is commonly utilized in automotive lighting, industrial equipment, and general indication applications where reliable visual feedback is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | White |
| Size / Dimension | 2.50mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | Side View LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
Request a Quote
Clients Also Buy

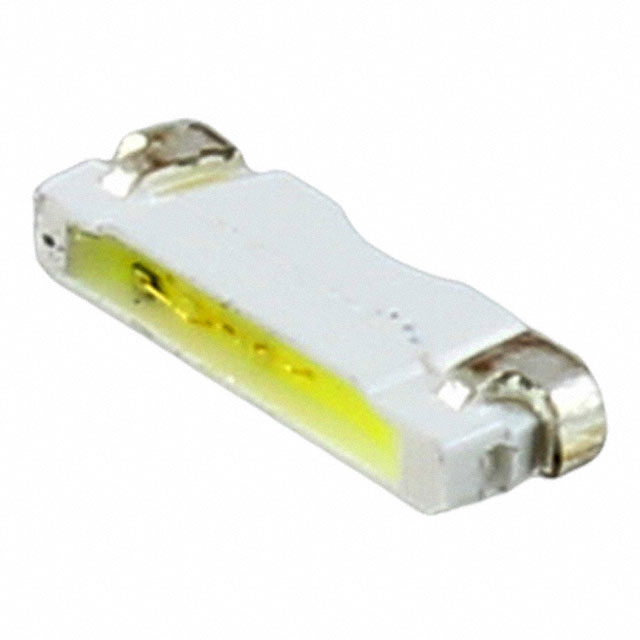

ZSM-S3806-W
LED WHITE DIFF SIDE VIEW SMD R/A

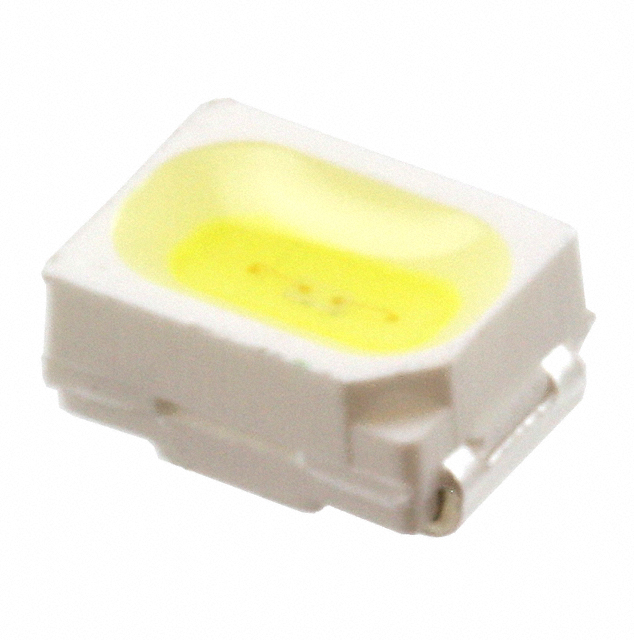

ZSM-T3020-W
