ZM-189-CW
LED MOD COOL WHT RECT 10000KManufacturer: JKL Components Corp.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

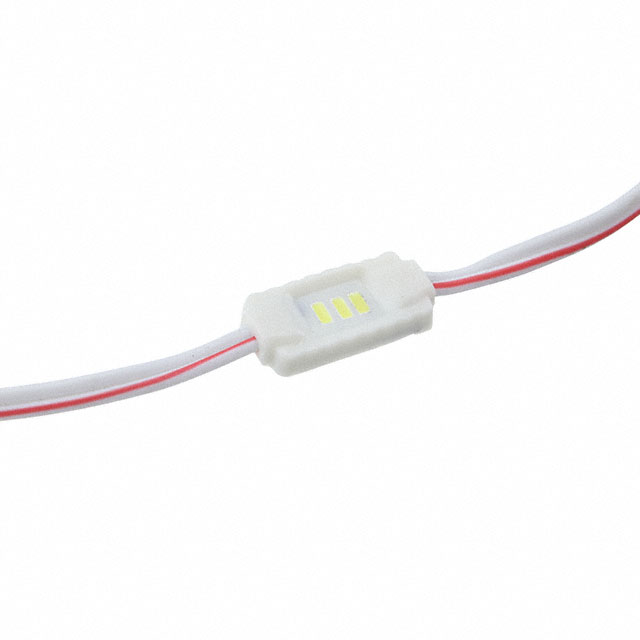

JKL Components Corp. ZM-189-CW is a cool white LED module featuring a rectangular configuration with a color temperature of 10000K. This module offers a typical luminous flux of 33lm at 30mA test current, with a luminous efficacy of 92 lm/W at the same conditions. The forward voltage is typically 12V. Designed with IP67 protection, this component is suitable for applications demanding durability and environmental resistance. Its compact dimensions of 16.30mm L x 9.00mm W and a height of 4.19mm make it versatile for integration into various lighting solutions. The ZM-189-CW is commonly utilized in architectural lighting, signage, and general illumination applications where high color temperature and robust performance are required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | IP67 |
| Packaging | Bulk |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 16.30mm L x 9.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 12V |
| Height | 4.19mm |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 30mA |
| Lumens/Watt @ Current - Test | 92 lm/W |
| CCT (K) | 10000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 33lm (Typ) |
