ZM-1610-CW
LED MOD COOL WHT ROUND 6000KManufacturer: JKL Components Corp.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

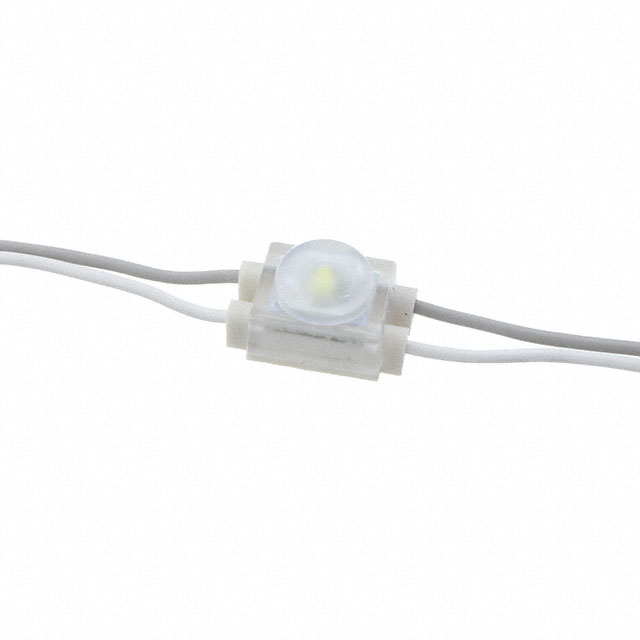

JKL Components Corp. ZM-1610-CW is a cool white LED module featuring a 6000K color temperature. This plug-and-play, round LED module has a 12.00mm L x 10.00mm W footprint with a height of 9.78mm. The module is rated IP67 for environmental protection and offers a typical luminous flux of 33lm at 30mA test current, with a luminous efficacy of 92 lm/W. Its domed lens provides a wide 160° viewing angle. This component is suitable for applications in general lighting and industrial equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | IP67 |
| Packaging | Bulk |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 12.00mm L x 10.00mm W |
| Type | LED Module |
| Configuration | Round, Plug and Play |
| Voltage - Forward (Vf) (Typ) | 12V |
| Height | 9.78mm |
| Current - Test | 30mA |
| Viewing Angle | 160° |
| Lens Type | Domed |
| Current - Max | 30mA |
| Lumens/Watt @ Current - Test | 92 lm/W |
| CCT (K) | 6000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 33lm (Typ) |
