ZFS-85020WR-CW
LED ENG CL WHT LNR STRP 6000K 5MManufacturer: JKL Components Corp.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

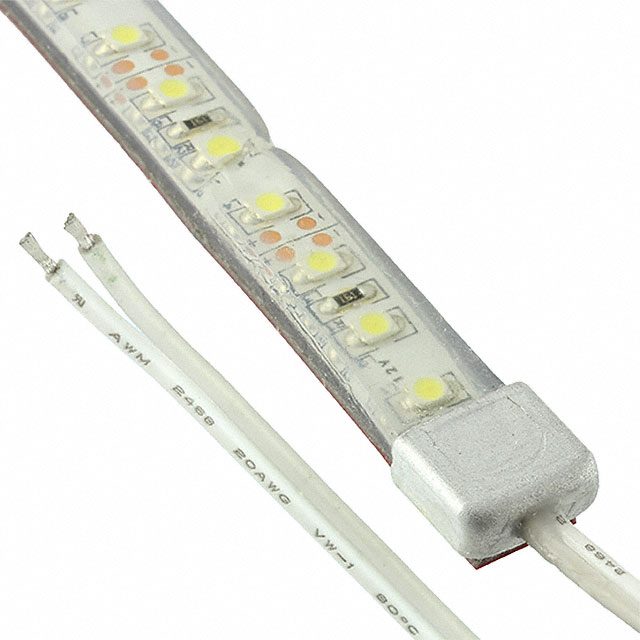

JKL Components Corp. ZFS-85020WR-CW, a flexible linear LED light strip, offers cool white illumination with a correlated color temperature (CCT) of 6000K. This LED engine is designed for demanding applications requiring efficient and uniform light distribution. With a typical forward voltage of 12V and a test current of 4A, it achieves a luminous flux of 1900 lumens. The strip measures 5000mm in length and 13mm in width, with a height of 5.60mm, and features a flat lens type. It exhibits a wide 120° viewing angle and delivers 40 lumens per watt at the specified test conditions. This component is suitable for use in general lighting, architectural lighting, and signage applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 5000.00mm L x 13.00mm W |
| Type | LED Engine |
| Configuration | Linear Light Strip, Flexible |
| Voltage - Forward (Vf) (Typ) | 12V |
| Height | 5.60mm |
| Current - Test | 4A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 40 lm/W |
| CCT (K) | 6000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1900lm (Typ) |
