ZFS-105000-24RGB
LED ENG RGB LINEAR STRIP 5MManufacturer: JKL Components Corp.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

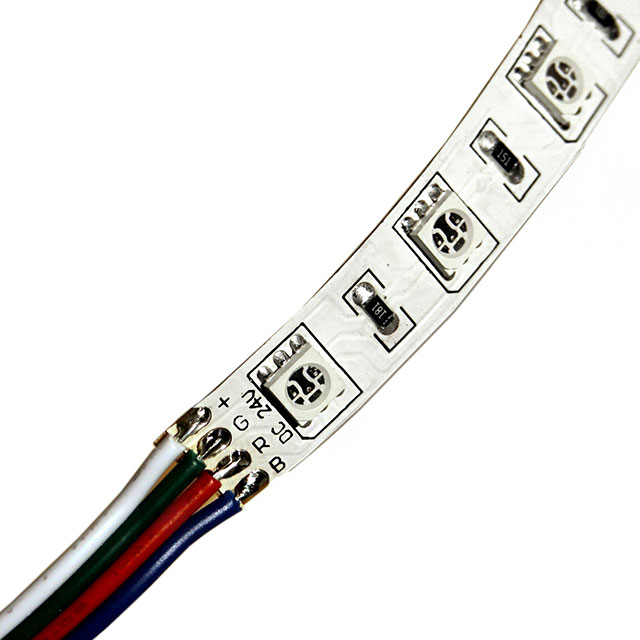

LED Lighting COBs Engines Modules LED Engine - Red, Green, Blue (RGB) Linear Light Strip, Flexible
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | - |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 630nm Red, 524nm Green, 470nm Blue |
| Size / Dimension | 5000.00mm L x 10.00mm W (100.00mm L per Segment) |
| Type | LED Engine |
| Configuration | Linear Light Strip, Flexible |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 1.46mm |
| Current - Test | 1A |
| Viewing Angle | 100° |
| Lens Type | Flat |
| Current - Max | 3A |
| Lumens/Watt @ Current - Test | 18 lm/W Red, 69 lm/W Green, 6 lm/W Blue |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 428lm (Typ) Red, 1508lm (Typ) Green, 143lm (Typ) Blue |
Request a Quote
