BF959-UV1/3
CCFL UV LAMP 375V 5MA 9X59MMManufacturer: JKL Components Corp.
Categories: Cold Cathode Fluorescent (CCFL) & UV Lamps
Quality Control: Learn More

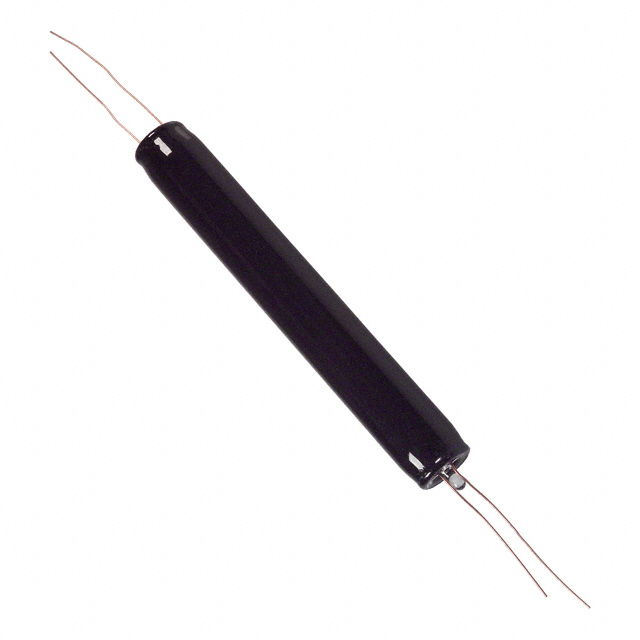

JKL Components Corp. BF959-UV1-3 is a Cold Cathode Fluorescent Lamp (CCFL) designed for ultraviolet (UV) applications requiring a narrow spectrum output. This component operates with a 375V starting voltage and a 150V operating voltage, drawing a current of 5 mA. It delivers an output of 110µW/cm² at a 1-inch distance. The physical dimensions are 9.0mm in diameter and 59mm in length. This UV CCFL is suitable for a variety of industrial and scientific applications where precise UV emission is critical, including curing, sterilization, and analytical instrumentation.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Size / Dimension | 9.0mm x 59mm |
| Voltage | 375V (Start), 150V (Operating) |
| Output | 110µW, cm2 @ 1"" |
| Type | CCFL, Ultraviolet (UV) Narrow Spectrum |
| Current | 5 mA |
| Packaging |
