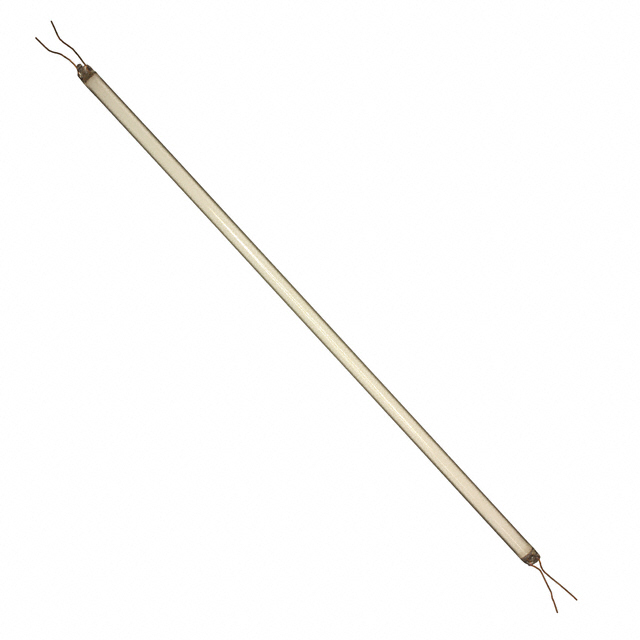

BF6262-30A
CCFL WH LAMP 850V 5MA 6.5X262MMManufacturer: JKL Components Corp.
Categories: Cold Cathode Fluorescent (CCFL) & UV Lamps
Quality Control: Learn More
JKL Components Corp. BF6262-30A is a CCFL, Tri-Phosphor RGB White Lamp designed for illumination applications. This component operates with an 850V start voltage and a 350V operating voltage, drawing a current of 5 mA. It delivers a luminance output of 3000 cd/m². The physical dimensions of the lamp are 6.5mm x 262mm. This CCFL lamp is suitable for use in general lighting, display backlighting, and industrial indicator systems. The BF6262-30A is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 6.5mm x 262mm |
| Voltage | 850V (Start), 350V (Operating) |
| Output | 3000 cd/m2 |
| Type | CCFL, Tri-Phosphor RGB White Lamp |
| Current | 5 mA |
