BF4142-20B
CCFL WH LAMP 800V 5MA 4.85X142MMManufacturer: JKL Components Corp.
Categories: Cold Cathode Fluorescent (CCFL) & UV Lamps
Quality Control: Learn More
JKL Components Corp. BF4142-20B is a CCFL, Tri-Phosphor RGB White Lamp designed for demanding illumination applications. This component operates with a starting voltage of 800V and an operating voltage of 260V, drawing a current of 5 mA. It delivers a luminance output of 9500 cd/m2. The lamp measures 4.85mm in diameter and 142mm in length. This CCFL is commonly utilized in industrial control panels, medical equipment displays, and signage where consistent and bright illumination is critical. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 4.85mm x 142mm |
| Voltage | 800V (Start), 260V (Operating) |
| Output | 9500 cd/m2 |
| Type | CCFL, Tri-Phosphor RGB White Lamp |
| Current | 5 mA |
Request a Quote
Clients Also Buy
BF4275-20B
CCFL WH LAMP 4.85X275MM 6150K

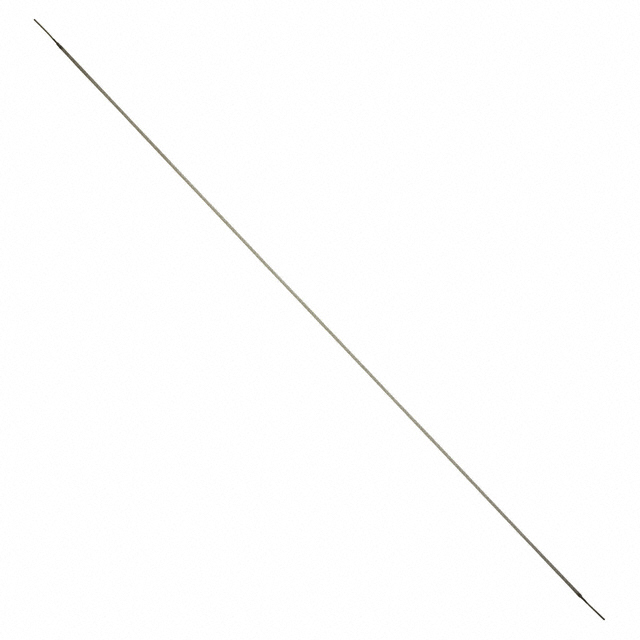

BF24438-33B
CCFL WH LAMP 1400V 5MA 2.4X437MM

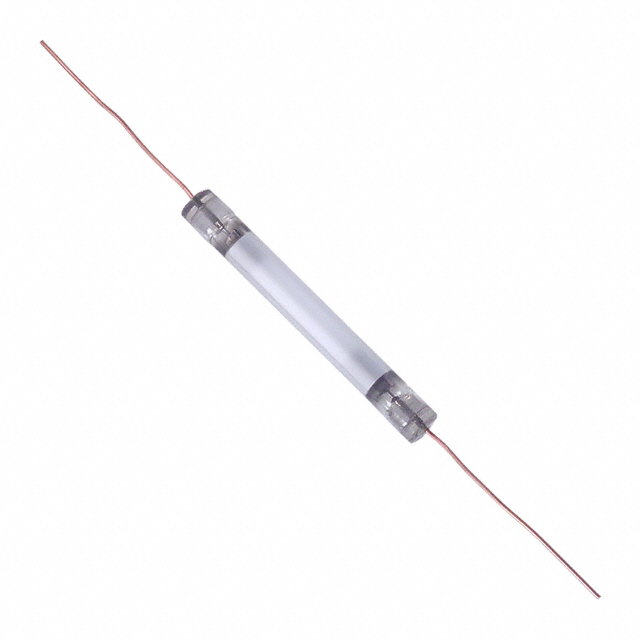

BF325-22B
