BF325-UV1
CCFL UV LAMP 350V 5MA 3X25MMManufacturer: JKL Components Corp.
Categories: Cold Cathode Fluorescent (CCFL) & UV Lamps
Quality Control: Learn More

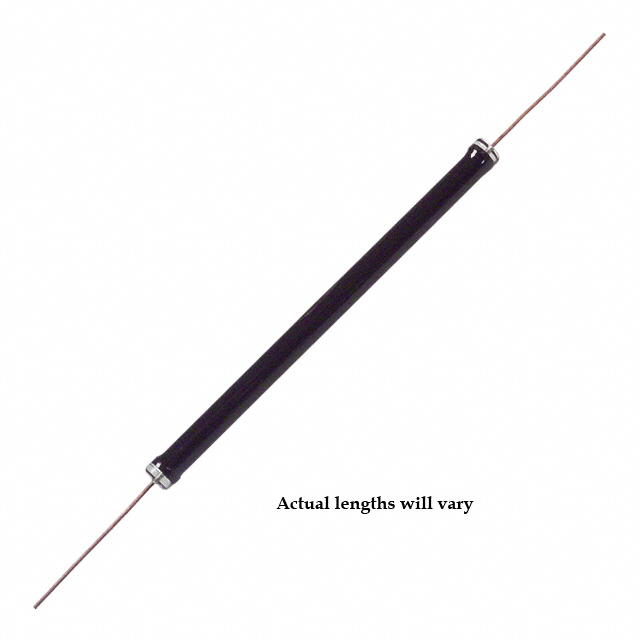

JKL Components Corp. BF325-UV1 is a Cold Cathode Fluorescent Lamp (CCFL) featuring a narrow ultraviolet spectrum output. This component is designed for operation with a 350V starting voltage and a 140V operating voltage, drawing a nominal current of 5 mA. It delivers an optical output of 80 µW/cm² at a 1-inch distance. The lamp's physical dimensions are 3.0mm in diameter and 25mm in length. This UV CCFL is suitable for applications in industrial curing processes, sterilization equipment, and specialized lighting systems requiring precise UV emission. The BF325-UV1 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 3.0mm x 25mm |
| Voltage | 350V (Start), 140V (Operating) |
| Output | 80µW, cm2 @ 1"" |
| Type | CCFL, Ultraviolet (UV) Narrow Spectrum |
| Current | 5 mA |
Request a Quote
