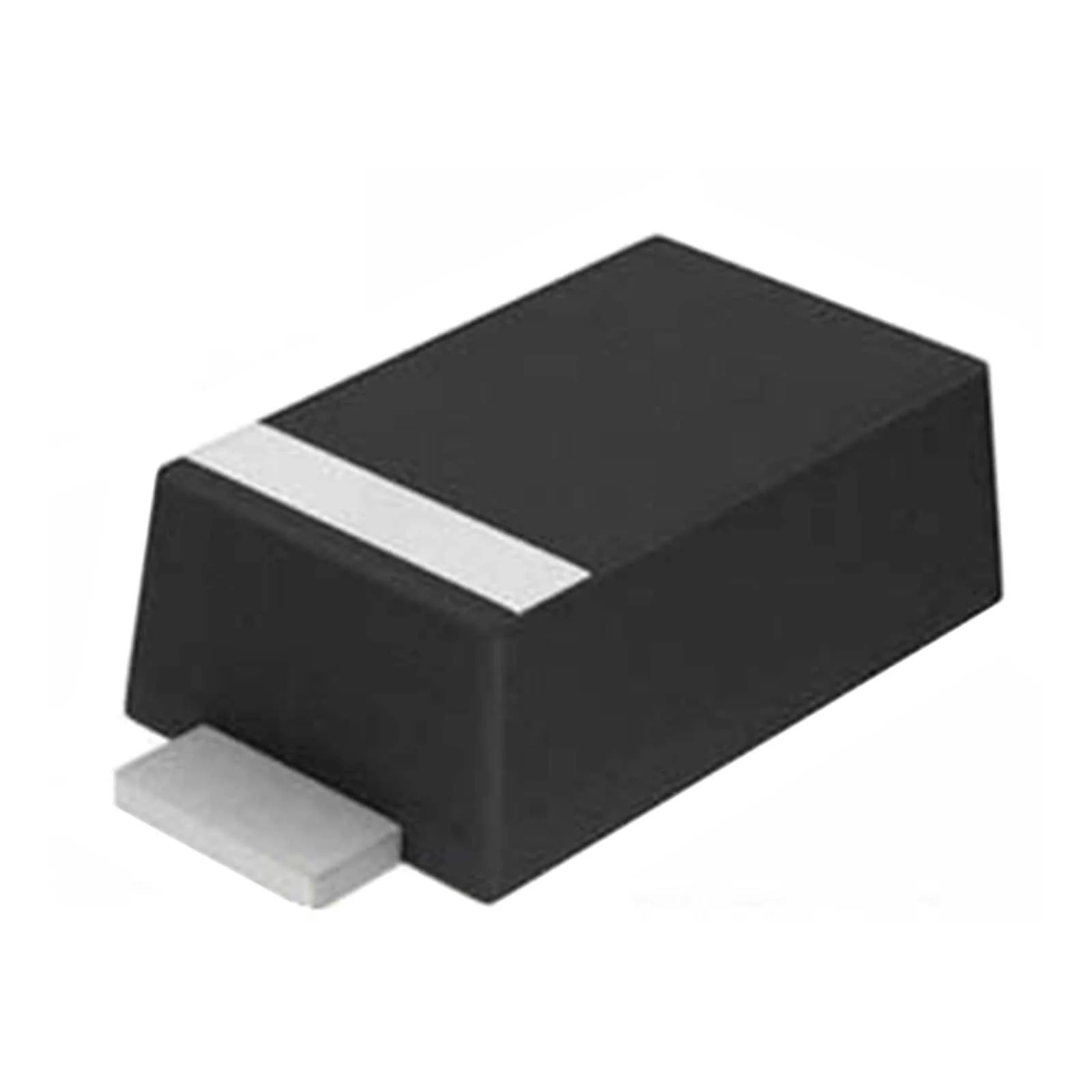

SMH101M
BRIDGE RECT 1P 600V 1.0A SOD-123Manufacturer: JATTA
Categories: Single Diodes
Quality Control: Learn More
Diode 50 V 1A Surface Mount SOD-123
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123F |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
| Qualification | - |
