QV6016RH5TP
TRIAC ALTERNISTOR 600V 16A TO220Manufacturer: IXYS
Categories: TRIACs
Quality Control: Learn More
TRIAC Alternistor - Snubberless 600 V 16 A Through Hole TO-220
Additional Information
Series: QVxx16xHxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 167A, 200A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-220 |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 600 V |
Request a Quote
Clients Also Buy
QV6016RH4TP
TRIAC ALTERNSTR 600V 16A TO220AB
QV6016LH4TP
TRIAC ALTRNSTR 600V 16A ITO220AB

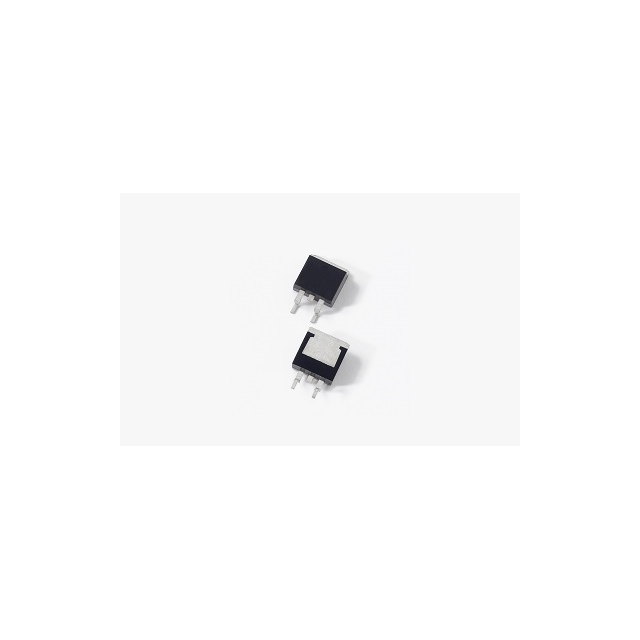

QV6016NH4TP
