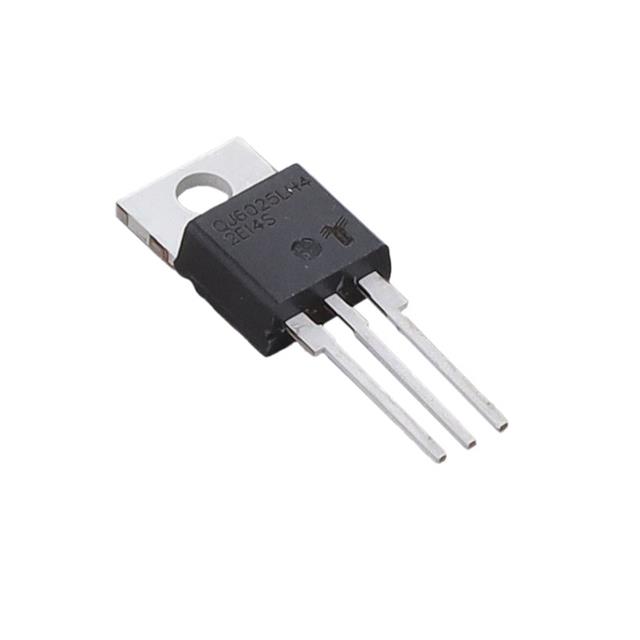

TRIAC Standard 600 V 25 A Through Hole ITO-220AB
Additional Information
Series: QJxx25xHxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Isolated Tab |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 208A, 250A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | ITO-220AB |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 600 V |
Request a Quote
Clients Also Buy
QJ8025NH4RP
TRIAC ALTERNISTOR 800V 25A TO263
QJ8025RH4TP
TRIAC ALTERNSTR 800V 25A TO220AB

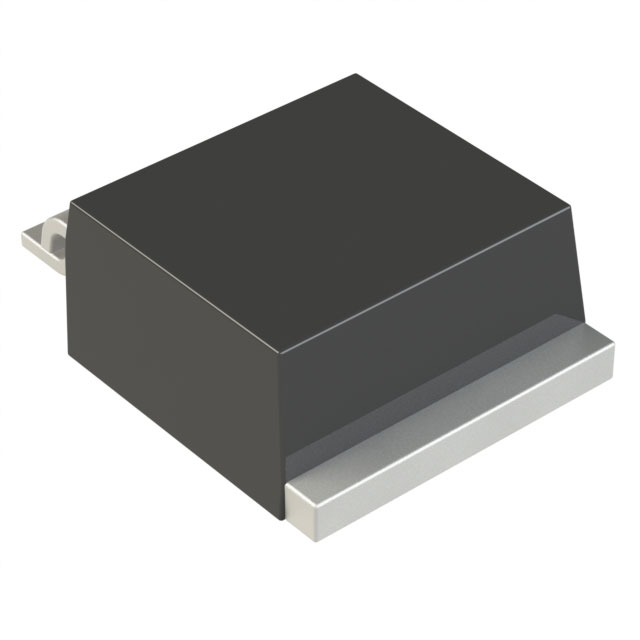

QJ6025NH4TP
