MMIX1Y100N120C3H1
IGBT 1200V 92A 400W SMPDManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IGBT 1200 V 92 A 400 W Surface Mount 24-SMPD
Additional Information
Series: GenX3™, XPT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 57 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-PowerSMD, 21 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 420 ns |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 100A |
| Supplier Device Package | 24-SMPD |
| IGBT Type | - |
| Td (on/off) @ 25°C | 48ns/123ns |
| Switching Energy | 6.5mJ (on), 2.9mJ (off) |
| Test Condition | 600V, 100A, 1Ohm, 15V |
| Gate Charge | 270 nC |
| Current - Collector (Ic) (Max) | 92 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 440 A |
| Power - Max | 400 W |
Request a Quote
Clients Also Buy
IXXH50N60B3D1
IGBT 600V 120A 600W TO247

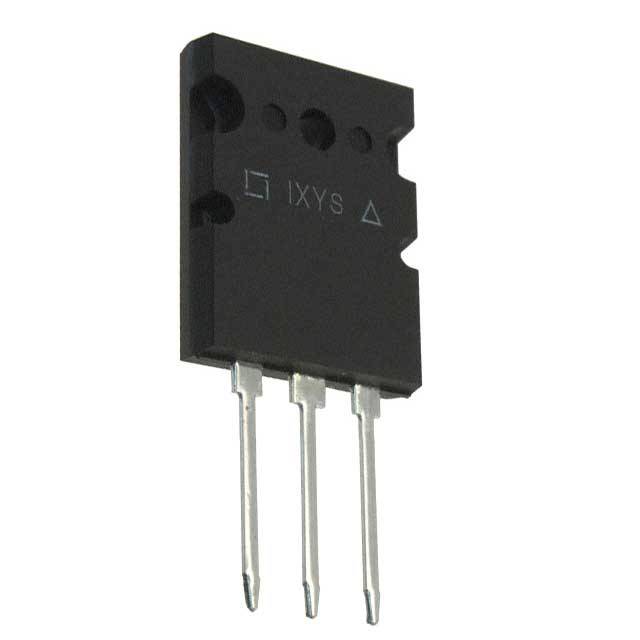

IXYK140N90C3
