MMIX1X100N60B3H1
IGBT 600V 145A 400W SMPDManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More

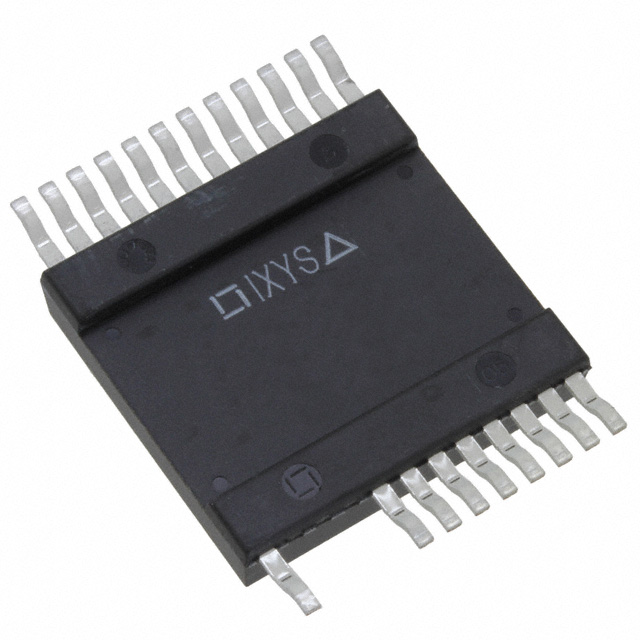

The IXYS MMIX1X100N60B3H1 is a high-performance emitter-controlled IGBT from the GenX3™ and XPT™ series. This device features a 600V collector-emitter breakdown voltage and a continuous collector current rating of 145A, with a pulsed capability of 440A. The low on-state voltage of 1.8V at 15V gate-emitter voltage and 70A collector current, combined with a maximum power dissipation of 400W, makes it suitable for demanding applications. Key switching parameters include a gate charge of 143 nC and switching energies of 1.9mJ (turn-on) and 2mJ (turn-off) under test conditions of 360V and 70A. It operates across a wide temperature range of -55°C to 150°C. The MMIX1X100N60B3H1 is packaged in a 24-SMPD with 21 leads, designed for surface mounting. This component finds application in power factor correction, motor drives, and uninterruptible power supplies.
Additional Information
Series: GenX3™, XPT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 46 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-PowerSMD, 21 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 140 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 70A |
| Supplier Device Package | 24-SMPD |
| IGBT Type | - |
| Td (on/off) @ 25°C | 30ns/120ns |
| Switching Energy | 1.9mJ (on), 2mJ (off) |
| Test Condition | 360V, 70A, 2Ohm, 15V |
| Gate Charge | 143 nC |
| Current - Collector (Ic) (Max) | 145 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 440 A |
| Power - Max | 400 W |
