IXYX110N120C4

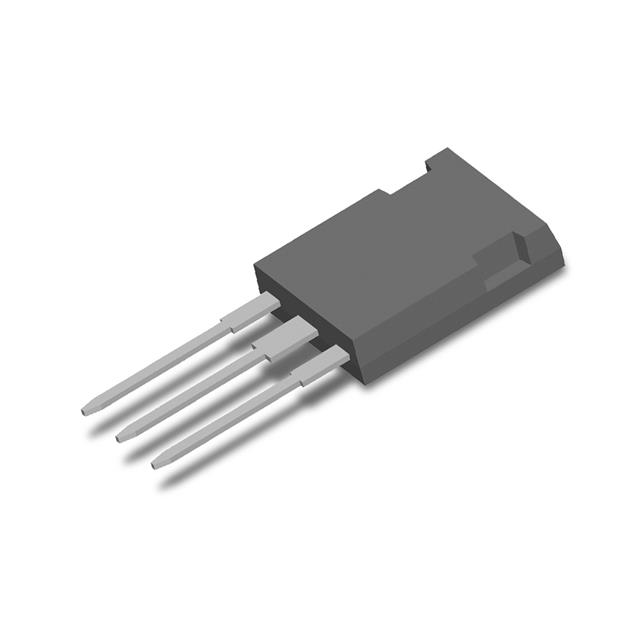

IGBT 1200V 310A PLUS247-3Manufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IXYS XPT™ series IGBT, part number IXYX110N120C4, offers a robust 1200 V breakdown voltage and a continuous collector current of 310 A (740 A pulsed). This through-hole component, housed in a PLUS247™-3 package, features a maximum power dissipation of 1360 W and a low on-state voltage (Vce(on)) of 2.4V at 15V gate-source voltage and 110A collector current. Key switching characteristics include a gate charge of 330 nC, typical turn-on delay of 40 ns, and turn-off delay of 320 ns at 25°C. The reverse recovery time (trr) is specified at 48 ns. This device is suitable for applications in high-power industrial motor drives, renewable energy systems, and electric vehicle powertrains.
Additional Information
Series: XPT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 57 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 48 ns |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 110A |
| Supplier Device Package | PLUS247™-3 |
| IGBT Type | - |
| Td (on/off) @ 25°C | 40ns/320ns |
| Switching Energy | 3.6mJ (on), 1.9mJ (off) |
| Test Condition | 600V, 50A, 2Ohm, 15V |
| Gate Charge | 330 nC |
| Current - Collector (Ic) (Max) | 310 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 740 A |
| Power - Max | 1360 W |
