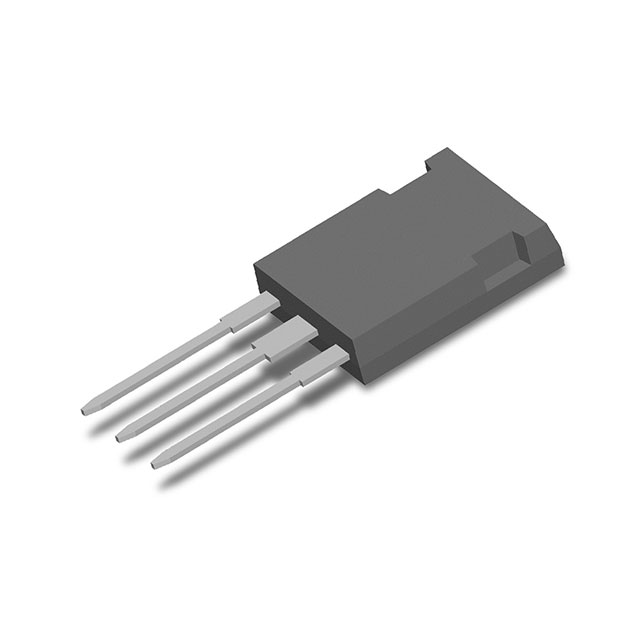

IXYX110N120A4
IGBT 1200V 110A GNX4 XPT PLUS247Manufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IXYS XPT™, GenX4™ IGBT IXYX110N120A4 offers robust performance for demanding power applications. This Trench IGBT features a 1200V collector-emitter breakdown voltage and a continuous collector current rating of 375A, with a pulsed capability of 900A. The device dissipates up to 1360W and exhibits a low on-state voltage of 1.8V at 15V gate-emitter voltage and 110A collector current. Optimized switching characteristics are demonstrated with typical turn-on delay of 42ns and turn-off delay of 550ns at 25°C, requiring 305nC of gate charge. The IXYX110N120A4 is housed in a TO-247-3 package for through-hole mounting and is suitable for high-power industrial, automotive, and renewable energy systems.
Additional Information
Series: XPT™, GenX4™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 57 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 110A |
| Supplier Device Package | TO-247 (IXTH) |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 42ns/550ns |
| Switching Energy | 2.5mJ (on), 8.4mJ (off) |
| Test Condition | 600V, 50A, 1.5Ohm, 15V |
| Gate Charge | 305 nC |
| Current - Collector (Ic) (Max) | 375 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 900 A |
| Power - Max | 1360 W |
Request a Quote
Clients Also Buy
IXXH80N65B4D1
IGBT PT 650V 180A TO247AD

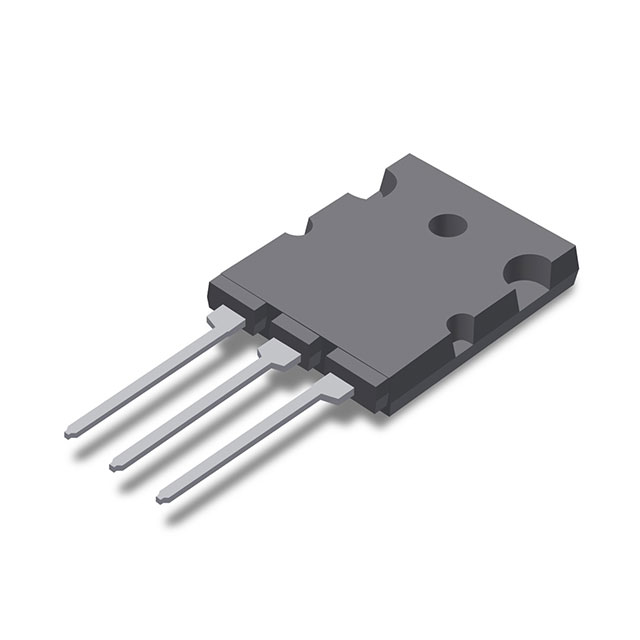

IXYK140N120A4
