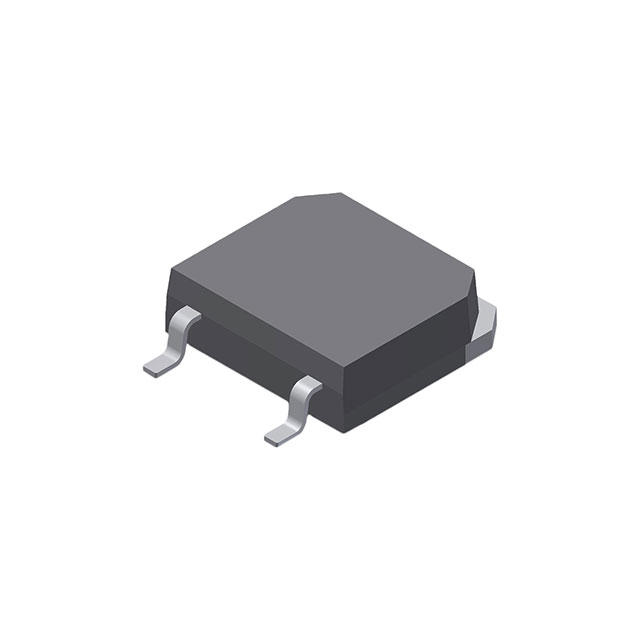

IXYT85N120A4HV
IGBT PT 1200V 300A TO268HVManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
The IXYS IXYT85N120A4HV is a Trench IGBT with a 1200V collector-emitter breakdown voltage and a continuous collector current capability of 300A (520A pulsed). This device features a low collector-emitter saturation voltage (Vce(on)) of 1.8V at 15V gate-emitter voltage and 85A collector current. With a total gate charge of 200 nC and switching energies of 4.9mJ (on) and 8.3mJ (off) under specified test conditions (600V, 60A, 5 Ohm, 15V), it is designed for efficient high-power switching applications. The maximum power dissipation is 1150W, and it operates within an extended temperature range of -55°C to 175°C. Packaged in a TO-268HV (IXYT) surface-mount configuration, this component is suitable for demanding power conversion systems in industries such as industrial automation, renewable energy, and electric vehicle powertrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 40 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 85A |
| Supplier Device Package | TO-268HV (IXYT) |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 40ns/400ns |
| Switching Energy | 4.9mJ (on), 8.3mJ (off) |
| Test Condition | 600V, 60A, 5Ohm, 15V |
| Gate Charge | 200 nC |
| Current - Collector (Ic) (Max) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 520 A |
| Power - Max | 1150 W |
