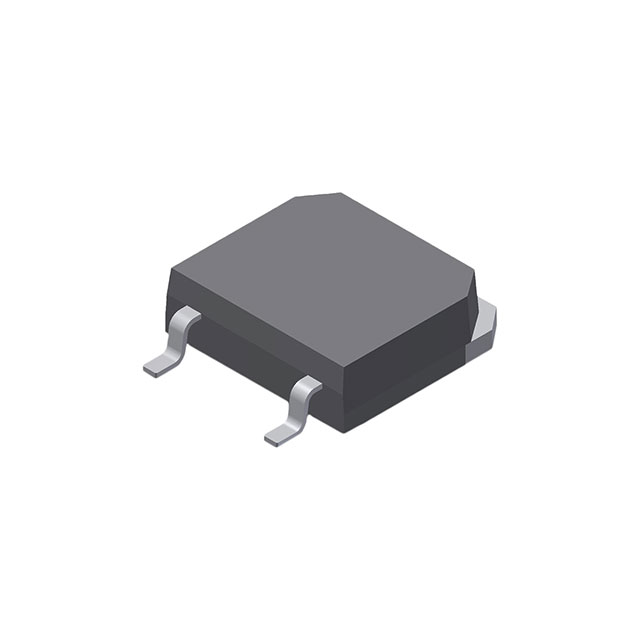

IXYT55N120A4HV
IGBT PT 1200V 175A TO268HVManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IXYS IXYT55N120A4HV is a 1200V, 175A Trench IGBT with a maximum power dissipation of 650W. This component features a standard input type and is packaged in a TO-268HV (IXYT) surface mount format. Key electrical characteristics include a collector current of 175A (350A pulsed), a gate charge of 110 nC, and a low on-state voltage of 1.8V at 15V Vge and 55A Ic. The IGBT exhibits a reverse recovery time of 35 ns and switching energies of 2.3mJ (on) and 5.3mJ (off) under test conditions of 600V, 40A, 5 Ohm, 15V. The operating temperature range is -55°C to 175°C. This device is suitable for applications in industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 35 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 55A |
| Supplier Device Package | TO-268HV (IXYT) |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 23ns/300ns |
| Switching Energy | 2.3mJ (on), 5.3mJ (off) |
| Test Condition | 600V, 40A, 5Ohm, 15V |
| Gate Charge | 110 nC |
| Current - Collector (Ic) (Max) | 175 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 350 A |
| Power - Max | 650 W |
