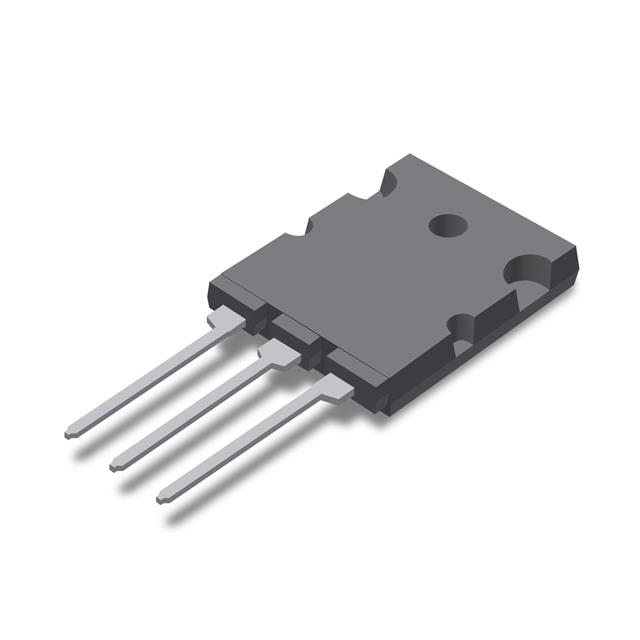

IXYK110N120C4
IGBT 1200V 110A GEN4 XPT TO264Manufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IXYS IXYK110N120C4 is a Generation 4 XPT™ IGBT designed for demanding high-power applications. This trench-gate planar-IGBT offers a 1200V collector-emitter breakdown voltage and a continuous collector current of 310A, with a pulsed capability of 740A. The device features a low on-state voltage of 2.4V at 15V gate-emitter voltage and 110A collector current, with a maximum power dissipation of 1360W. Switching characteristics include a typical turn-on delay of 40ns and turn-off delay of 320ns at 25°C, with a reverse recovery time of 48ns. The gate charge is specified at 330nC. The IXYK110N120C4 is housed in a TO-264-3, TO-264AA (PLUS264™) package suitable for through-hole mounting, operating across a wide temperature range of -55°C to 175°C. This component is frequently utilized in industrial motor drives, electric vehicle powertrains, and high-voltage power supplies.
Additional Information
Series: XPT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 57 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 48 ns |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 110A |
| Supplier Device Package | PLUS264™ |
| IGBT Type | - |
| Td (on/off) @ 25°C | 40ns/320ns |
| Switching Energy | 3.6mJ (on), 1.9mJ (off) |
| Test Condition | 600V, 50A, 2Ohm, 15V |
| Gate Charge | 330 nC |
| Current - Collector (Ic) (Max) | 310 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 740 A |
| Power - Max | 1360 W |
