IXGQ90N33TCD1
IGBT 330V 90A 200W TO3PManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IXYS IXGQ90N33TCD1 is a trench IGBT with a 330V collector-emitter breakdown voltage. This component is rated for a continuous collector current of 90A and a maximum power dissipation of 200W. The Vce(on) is specified at 1.8V maximum for a gate-emitter voltage of 15V and a collector current of 45A, with a typical gate charge of 69 nC. The IXGQ90N33TCD1 features a standard input type and is housed in a TO-3P-3, SC-65-3 package, suitable for through-hole mounting. This device is commonly utilized in industrial applications such as motor drives and power supplies.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

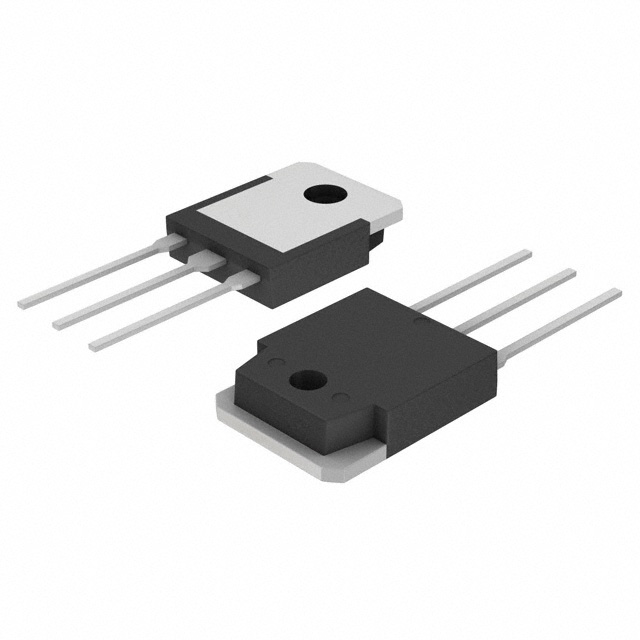

| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 45A |
| Supplier Device Package | TO-3P |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | - |
| Switching Energy | - |
| Test Condition | - |
| Gate Charge | 69 nC |
| Current - Collector (Ic) (Max) | 90 A |
| Voltage - Collector Emitter Breakdown (Max) | 330 V |
| Power - Max | 200 W |
