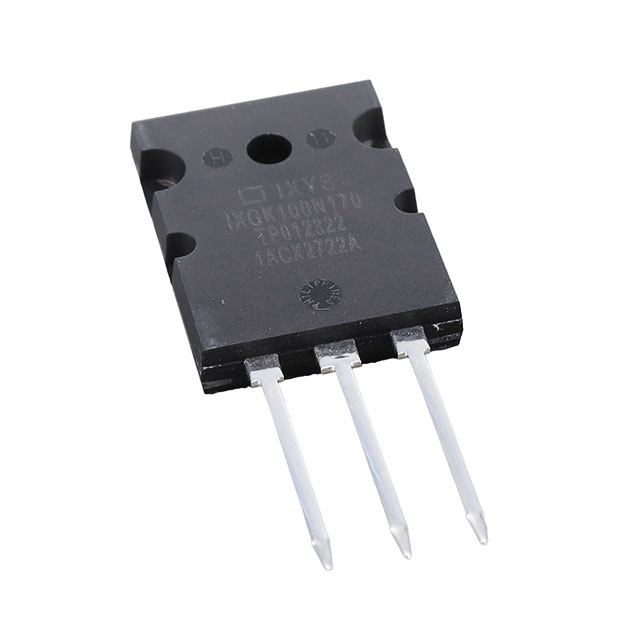

IXGK100N170
IGBT PT 1000V 120A TO-264Manufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IXYS IGBT, part number IXGK100N170, is a high-voltage insulated gate bipolar transistor designed for demanding power applications. This PLUS264™ packaged device offers a robust 1700V collector-emitter breakdown voltage and a continuous collector current capability of 170A (600A pulsed). With a maximum power dissipation of 830W and a low on-state voltage of 3V at 15V gate-emitter voltage and 100A collector current, the IXGK100N170 ensures efficient power handling. Typical switching times are 35ns turn-on and 285ns turn-off at 25°C under test conditions of 850V, 100A, 1 Ohm, and 15V. The component features standard input and a through-hole mounting type, specified in a TO-264-3, TO-264AA package. Operating across a wide temperature range of -55°C to 150°C, this IGBT is suitable for industrial motor drives, uninterruptible power supplies (UPS), and high-power switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 100A |
| Supplier Device Package | PLUS264™ |
| IGBT Type | - |
| Td (on/off) @ 25°C | 35ns/285ns |
| Switching Energy | - |
| Test Condition | 850V, 100A, 1Ohm, 15V |
| Gate Charge | 425 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 170 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector Pulsed (Icm) | 600 A |
| Power - Max | 830 W |
| Qualification | - |
