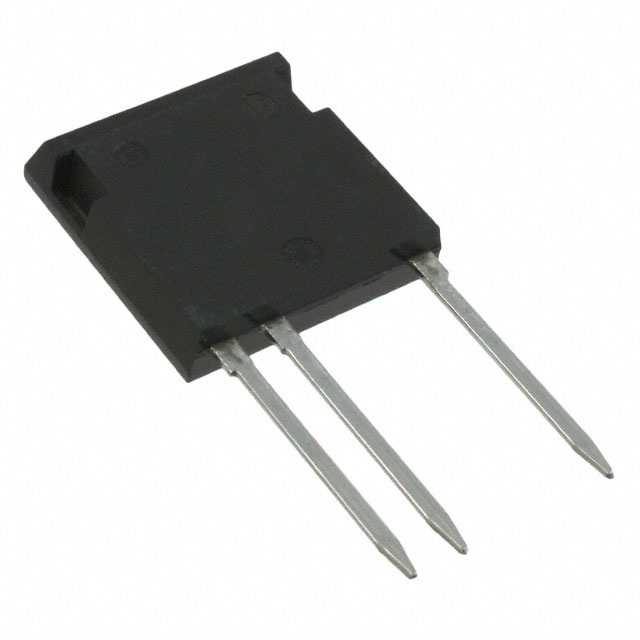

IXGF30N400
IGBT 4000V 30A 160W I4-PAKManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IGBT 4000 V 30 A 160 W Through Hole ISOPLUS i4-PAC™
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | i4-Pac™-5 (3 Leads) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 5.2V @ 15V, 90A |
| Supplier Device Package | ISOPLUS i4-PAC™ |
| IGBT Type | - |
| Td (on/off) @ 25°C | - |
| Switching Energy | - |
| Test Condition | - |
| Gate Charge | 135 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 4000 V |
| Current - Collector Pulsed (Icm) | 360 A |
| Power - Max | 160 W |
Request a Quote
