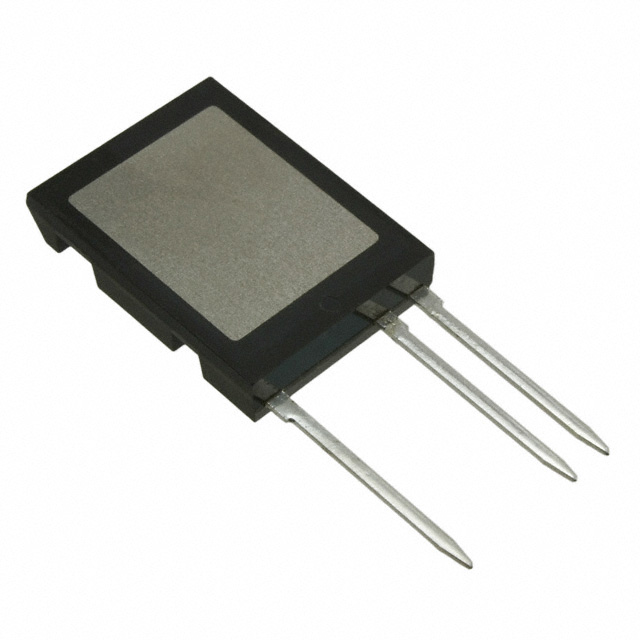

IXBL60N360
IGBT 3600V 92A ISOPLUSI5Manufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IGBT 3600 V 92 A 417 W Through Hole ISOPLUSi5-Pak™
Additional Information
Series: BIMOSFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | ISOPLUSi5-Pak™ |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 1.95 µs |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 60A |
| Supplier Device Package | ISOPLUSi5-Pak™ |
| IGBT Type | - |
| Td (on/off) @ 25°C | 50ns/340ns |
| Switching Energy | - |
| Test Condition | 960V, 60A, 4.7Ohm, 15V |
| Gate Charge | 450 nC |
| Current - Collector (Ic) (Max) | 92 A |
| Voltage - Collector Emitter Breakdown (Max) | 3600 V |
| Current - Collector Pulsed (Icm) | 720 A |
| Power - Max | 417 W |
