IXBH28N170A
IGBT 1700V 30A 300W TO247ADManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
IGBT 1700 V 30 A 300 W Through Hole TO-247AD
Additional Information
Series: BIMOSFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 360 ns |
| Vce(on) (Max) @ Vge, Ic | 6V @ 15V, 14A |
| Supplier Device Package | TO-247AD |
| IGBT Type | - |
| Td (on/off) @ 25°C | 35ns/265ns |
| Switching Energy | 1.2mJ (off) |
| Test Condition | 850V, 14A, 10Ohm, 15V |
| Gate Charge | 105 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector Pulsed (Icm) | 60 A |
| Power - Max | 300 W |
Request a Quote
Clients Also Buy
IXBH42N170
IGBT 1700V 80A TO247AD
IXBT2N250
IGBT 2500V 5A TO268AA

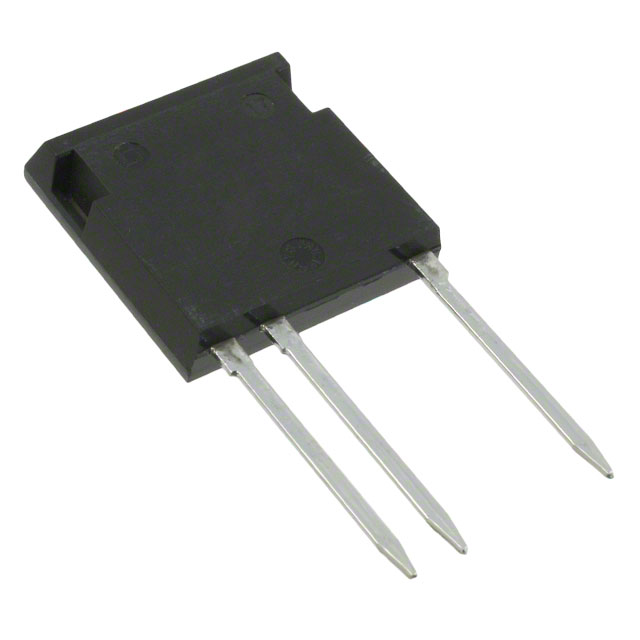

IXBF20N360
