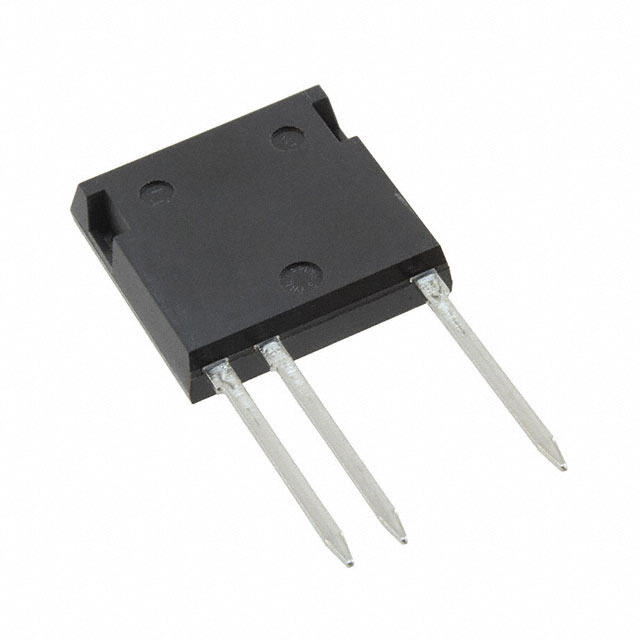

IXBF50N360
IGBT 3600V 70A 290W I4-PAKManufacturer: IXYS
Categories: Single IGBTs
Quality Control: Learn More
The IXYS IXBF50N360 is a high-voltage BIMOSFET™ IGBT from the ISOPLUS i4-PAC™ series. This through-hole component offers a robust 3600V collector-emitter breakdown voltage and a continuous collector current capability of 70A, with a pulsed current rating of 420A. It features a maximum power dissipation of 290W and a low on-state voltage of 2.9V at 15V gate-emitter voltage and 50A collector current. The device exhibits a typical gate charge of 210 nC and has switching times of 46ns turn-on and 205ns turn-off at 25°C, with a reverse recovery time of 1.7µs. Operating across a wide temperature range of -55°C to 150°C, this IGBT is housed in an i4-Pac™-5 package. Applications include high-power conversion systems and industrial motor drives.
Additional Information
Series: BIMOSFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | i4-Pac™-5 (3 Leads) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 1.7 µs |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 50A |
| Supplier Device Package | ISOPLUS i4-PAC™ |
| IGBT Type | - |
| Td (on/off) @ 25°C | 46ns/205ns |
| Switching Energy | - |
| Test Condition | 960V, 50A, 5Ohm, 15V |
| Gate Charge | 210 nC |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 3600 V |
| Current - Collector Pulsed (Icm) | 420 A |
| Power - Max | 290 W |
