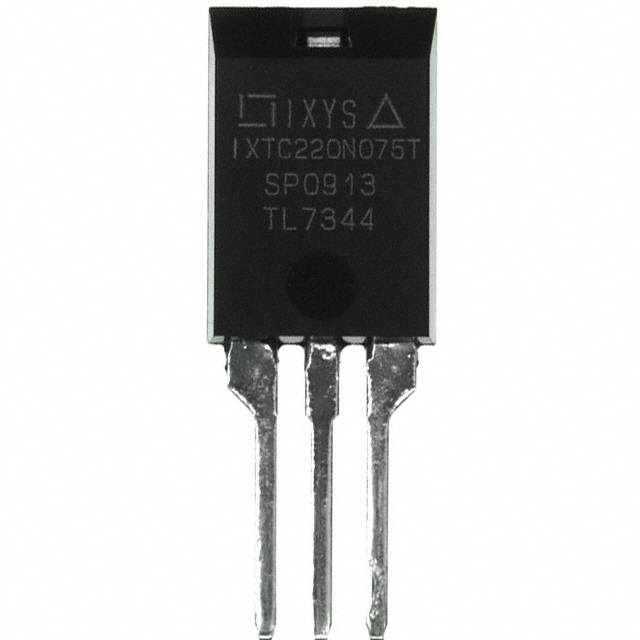

IXTC220N075T
MOSFET N-CH 75V 115A ISOPLUS220Manufacturer: IXYS
Categories: Single FETs, MOSFETs
Quality Control: Learn More
IXYS IXTC220N075T is an N-Channel Power MOSFET from the TrenchMV™ series. This component features a 75V Drain-Source Voltage (Vdss) and a continuous drain current of 115A at 25°C (Tc). With a low on-resistance of 5mOhm at 25A and 10V (Vgs), it offers efficient power handling up to 150W (Tc). The device has a gate charge (Qg) of 165 nC at 10V and an input capacitance (Ciss) of 7700 pF at 25V. It is housed in an ISOPLUS220™ package with a through-hole mounting type and operates within a temperature range of -55°C to 175°C (TJ). This MOSFET is suitable for applications in power supplies, motor control, and industrial automation.
Additional Information
Series: TrenchMV™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | ISOPLUS220™ |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 115A (Tc) |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 25A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 150W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | ISOPLUS220™ |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 75 V |
| Gate Charge (Qg) (Max) @ Vgs | 165 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7700 pF @ 25 V |
