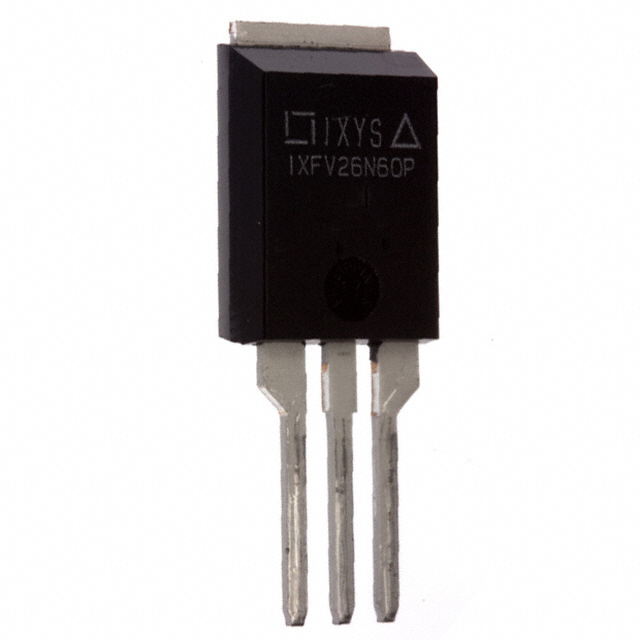

IXFV26N60P
MOSFET N-CH 600V 26A PLUS220Manufacturer: IXYS
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The IXYS IXFV26N60P is a 600V N-Channel Power MOSFET from the PolarHV™ series. This through-hole component, packaged in a PLUS220 (TO-220-3, Short Tab), offers a continuous drain current of 26A at 25°C and a maximum power dissipation of 460W (Tc). Key electrical characteristics include a Vgs(th) of 5V at 4mA and a low on-resistance of 270mOhm at 500mA and 10V Vgs. Input capacitance (Ciss) is rated at 4150pF at 25V, with a gate charge (Qg) of 72nC at 10V. The device operates reliably across a temperature range of -55°C to 150°C. This component is suitable for applications in power supplies, motor drives, and industrial automation.
Additional Information
Series: PolarHV™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3, Short Tab |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 500mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 460W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 4mA |
| Supplier Device Package | PLUS220 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4150 pF @ 25 V |
