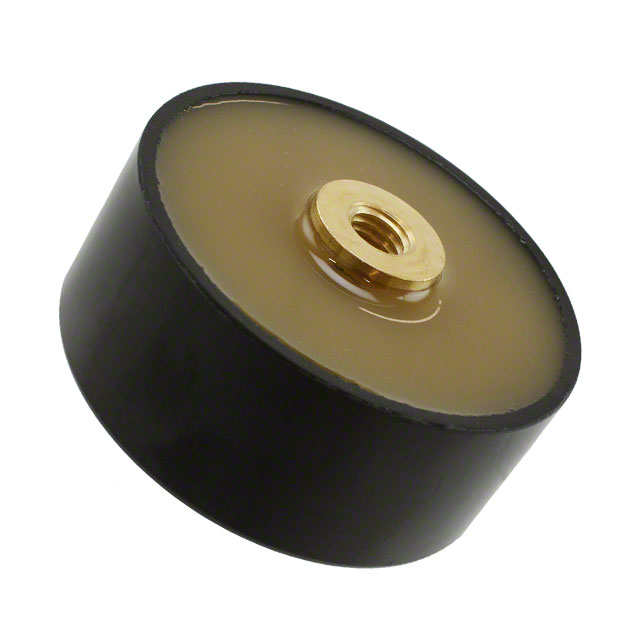

UGE3126AY4
DIODE GEN PURP 24KV 2A UGEManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS UGE3126AY4 is a General Purpose Diode designed for high-voltage applications. This component features a 24kV maximum DC reverse voltage (Vr) and a 2A average rectified forward current (Io). The forward voltage drop (Vf) is a maximum of 18V at 3A. It exhibits a reverse leakage current of 1mA at its maximum reverse voltage. The UGE3126AY4 utilizes Standard recovery technology with a speed greater than 500ns. It is housed in a UGE package for chassis mounting and is supplied in box packaging. This diode is suitable for use in power supply rectification and high-voltage switching circuits across industrial and medical equipment sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | UGE |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | UGE |
| Voltage - DC Reverse (Vr) (Max) | 24000 V |
| Voltage - Forward (Vf) (Max) @ If | 18 V @ 3 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 24000 V |
