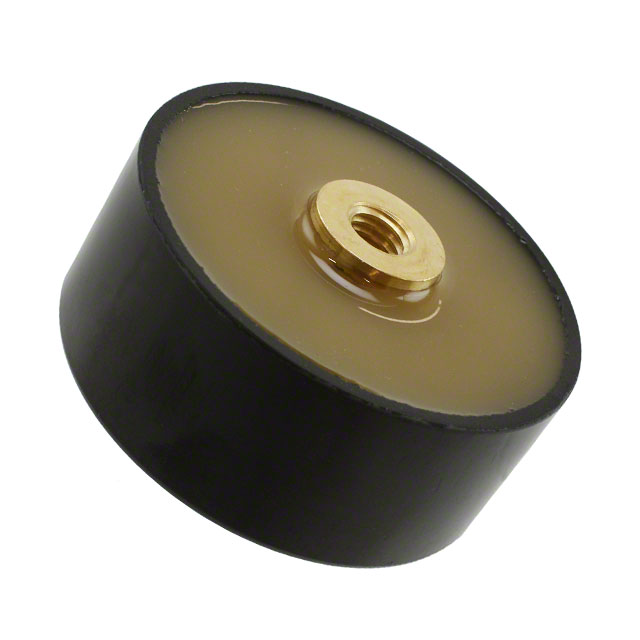

UGE1112AY4
DIODE GEN PURP 8KV 4.2A UGEManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS UGE1112AY4 is an 8000 V, 4.2 A general-purpose diode designed for high-voltage rectification applications. This component features a robust UGE package for chassis mounting, ensuring effective thermal management in demanding environments. With a maximum forward voltage drop of 6.25 V at 7 A and a reverse leakage current of 1 mA at its peak reverse voltage of 8000 V, the UGE1112AY4 is suitable for power conversion, industrial power supplies, and high-voltage systems. Its standard recovery speed, exceeding 500 ns for currents greater than 200 mA, makes it a reliable choice for applications where fast switching is not the primary requirement. The UGE1112AY4 is delivered in box packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | UGE |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 4.2A |
| Supplier Device Package | UGE |
| Voltage - DC Reverse (Vr) (Max) | 8000 V |
| Voltage - Forward (Vf) (Max) @ If | 6.25 V @ 7 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 8000 V |
