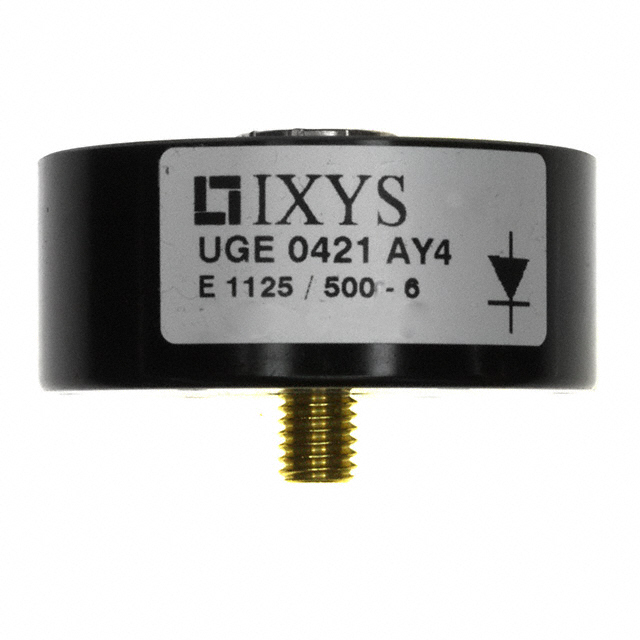

UGE0421AY4
DIODE GEN PURP 3.2KV 22.9A UGEManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
The IXYS UGE0421AY4 is a general-purpose diode designed for demanding applications. This component features a maximum DC reverse voltage (Vr) of 3200 V and an average rectified forward current (Io) of 22.9 A. Its forward voltage drop (Vf) is specified at 2.72 V at an If of 55 A. The reverse leakage current is a maximum of 2 mA at 3200 V. This diode utilizes standard recovery technology with a speed rating of >500ns, >200mA (Io). The UGE0421AY4 is housed in a UGE package for chassis mounting, making it suitable for power electronics applications in industries such as industrial automation, motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | UGE |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 22.9A |
| Supplier Device Package | UGE |
| Voltage - DC Reverse (Vr) (Max) | 3200 V |
| Voltage - Forward (Vf) (Max) @ If | 2.72 V @ 55 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 3200 V |
