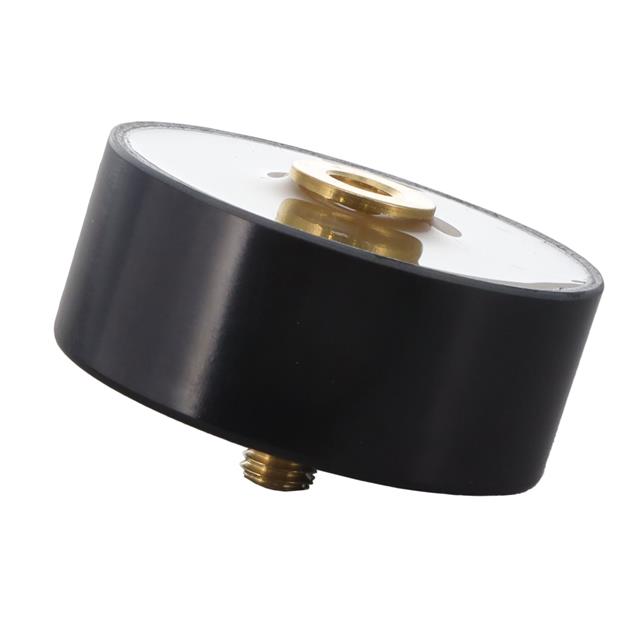

UGE0221AY4
DIODE GEN PURP 4.8KV 10.2A UGEManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS UGE0221AY4 is a general-purpose diode with a maximum repetitive peak reverse voltage of 4800 V and an average rectified forward current of 10.2 A. This device features a forward voltage drop of 4.8 V at 30 A and a reverse leakage current of 2 mA at 4800 V. The UGE0221AY4 utilizes standard recovery technology with a speed greater than 500 ns and greater than 200 mA (Io). It is designed for efficient operation in high-voltage applications requiring robust performance. The component is presented in a UGE package, suitable for chassis mounting. This diode is commonly employed in power supply rectification, high-voltage switching, and industrial power control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | UGE |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10.2A |
| Supplier Device Package | UGE |
| Voltage - DC Reverse (Vr) (Max) | 4800 V |
| Voltage - Forward (Vf) (Max) @ If | 4.8 V @ 30 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 4800 V |
