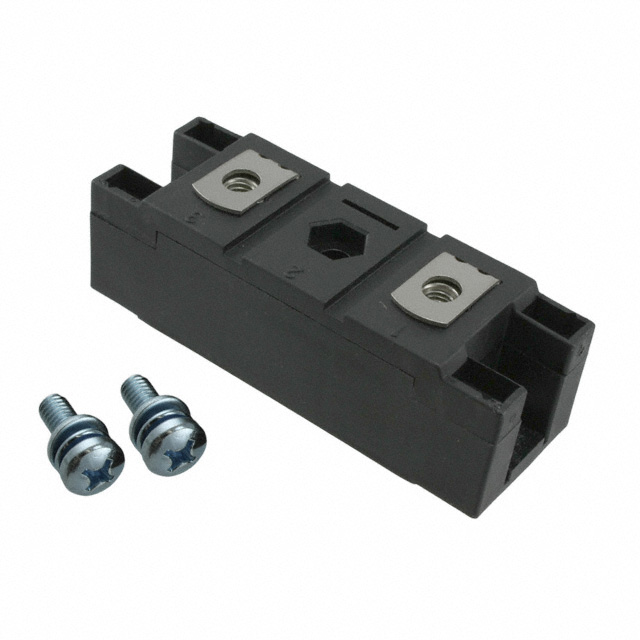

MEO550-02DA
DIODE GEN PURP 200V 582A Y4-M6Manufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
The IXYS MEO550-02DA is a general-purpose diode designed for demanding power applications. This chassis-mount component offers a maximum DC reverse voltage (Vr) of 200 V and an average rectified current (Io) capability of 582 A. It features a forward voltage (Vf) of 1.25 V at 520 A, indicating efficient conduction. With a reverse leakage current of 5 mA at 200 V and a reverse recovery time (trr) of 200 ns, this diode is suitable for applications requiring fast switching characteristics. The Y4-M6 package facilitates robust thermal management. This device finds application in power supplies, motor control, and industrial power conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 582A |
| Supplier Device Package | Y4-M6 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 520 A |
| Current - Reverse Leakage @ Vr | 5 mA @ 200 V |
