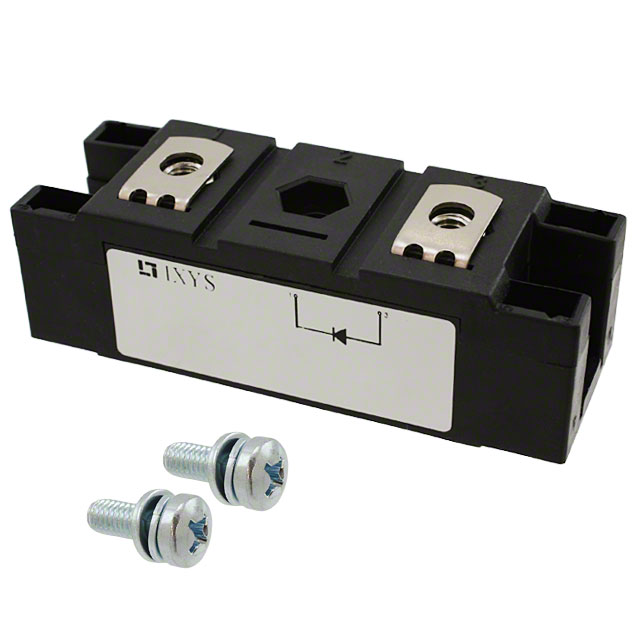

MEO500-06DA
DIODE GEN PURP 600V 514A Y4-M6Manufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS MEO500-06DA is a general-purpose diode with a 600V reverse voltage rating and a 514A average rectified current. This chassis-mount device features a Y4-M6 package and operates within a junction temperature range of -40°C to 150°C. The forward voltage (Vf) is specified at a maximum of 1.52V at 520A. With a reverse leakage of 24mA at 600V, this standard technology diode offers a typical reverse recovery time (trr) of 300ns, classifying it as a fast recovery diode. It is commonly utilized in power conversion and industrial applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 300 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 514A |
| Supplier Device Package | Y4-M6 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.52 V @ 520 A |
| Current - Reverse Leakage @ Vr | 24 mA @ 600 V |
