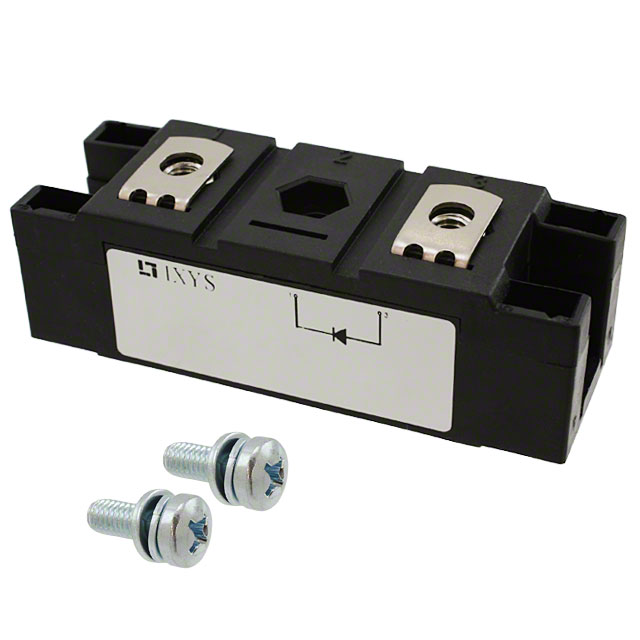

MEO450-12DA
DIODE GEN PURP 1.2KV 453A Y4-M6Manufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
The IXYS MEO450-12DA is a general-purpose diode with a maximum DC reverse voltage rating of 1200 V. This chassis mount component offers a high average rectified current capability of 453 A, with a forward voltage drop of 1.96 V at 520 A. The device features a reverse leakage of 24 mA at its maximum reverse voltage. Designed for demanding applications, it operates across a junction temperature range of -40°C to 150°C. The Y4-M6 package facilitates efficient thermal management. This diode is suitable for power conversion and control systems in industrial automation and renewable energy sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 453A |
| Supplier Device Package | Y4-M6 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.96 V @ 520 A |
| Current - Reverse Leakage @ Vr | 24 mA @ 1200 V |
