DSI75-12B
DIODE GP 1.2KV 110A DO203ABManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More

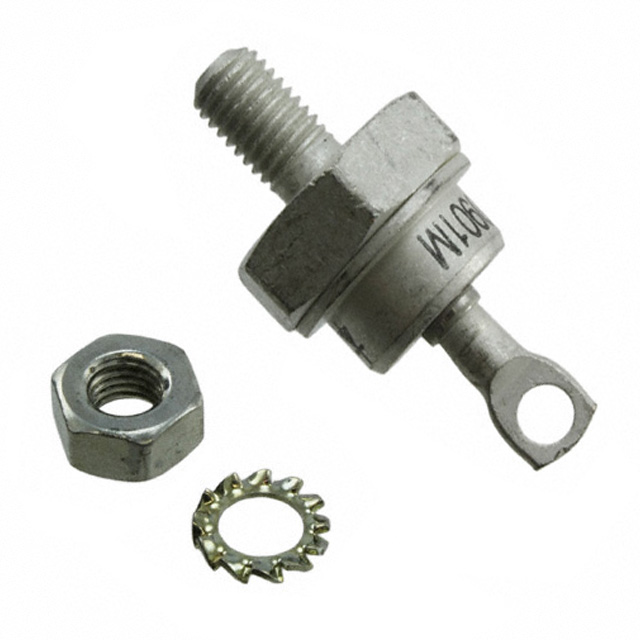

The IXYS DSI75-12B is a general-purpose diode with a 1200V reverse voltage and a 110A average rectified current. This component features a stud mount design within a DO-203AB (DO-5) package, suitable for chassis mounting. Its forward voltage drop is 1.17V at 150A, with a reverse leakage current of 6mA at 1200V. The operating junction temperature range is -40°C to 180°C. This diode offers standard recovery speed, exceeding 500ns for Io greater than 200mA. Applications include power supplies, motor control, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Chassis, Stud Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 110A |
| Supplier Device Package | DO-203AB |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.17 V @ 150 A |
| Current - Reverse Leakage @ Vr | 6 mA @ 1200 V |
