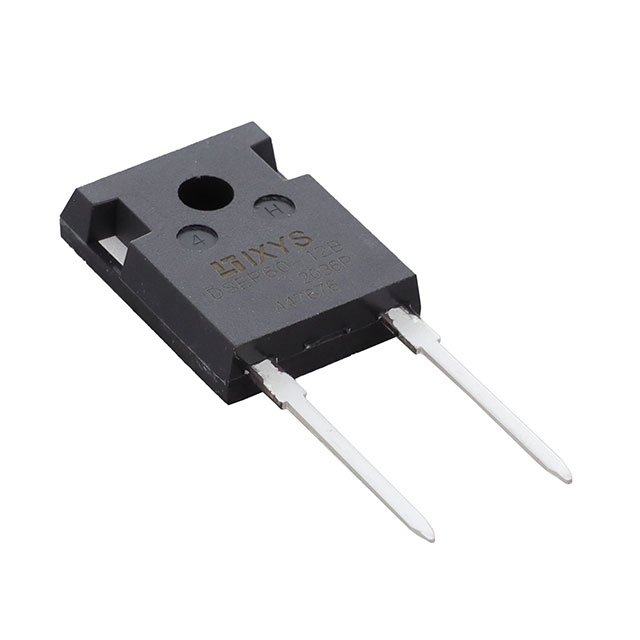

DSEP60-12B
DIODE GEN PURP 1.2KV 60A TO247Manufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
The IXYS DSEP60-12B is a general-purpose diode designed for demanding applications. This through-hole component features a 1200V maximum DC reverse voltage (Vr) and an average rectified forward current (Io) of 60A. Its forward voltage drop (Vf) is specified at 3.25V maximum at 60A. The diode exhibits a reverse leakage current of 200 µA at 1200V. With a reverse recovery time (trr) of 65 ns, it is classified as a fast recovery diode. The device is housed in a TO-247-2 package and operates within a junction temperature range of -55°C to 175°C. Capacitance at 600V and 1MHz is 30pF. This component is suitable for use in power electronics, industrial motor control, and high-voltage power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 65 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 30pF @ 600V, 1MHz |
| Current - Average Rectified (Io) | 60A |
| Supplier Device Package | TO-247 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 3.25 V @ 60 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V |
