DSAI75-16B
DIODE AVAL 1.6KV 110A DO203ABManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More

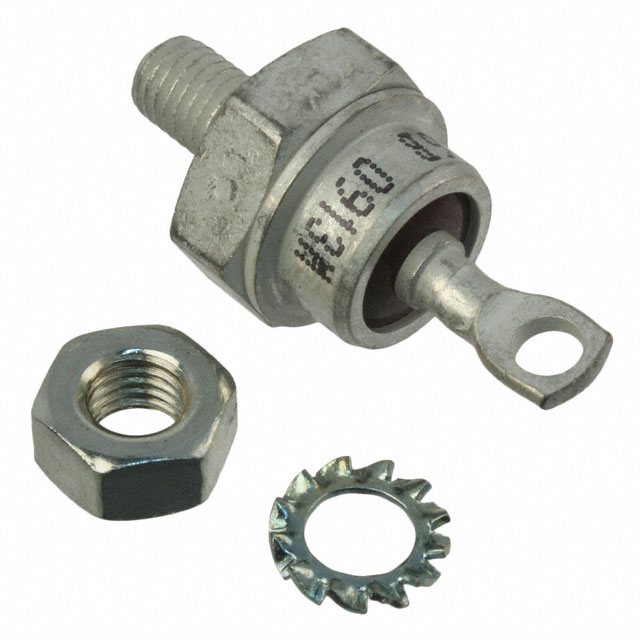

IXYS DSAI75-16B is a high-voltage avalanche diode designed for demanding power applications. This component features a 1600 V reverse voltage capability and a continuous average rectified forward current rating of 110 A. The DSAI75-16B is housed in a DO-203AB (DO-5) package with a stud mount for robust chassis integration. Its avalanche technology provides enhanced protection against transient overvoltage conditions. The diode exhibits a typical forward voltage drop of 1.17 V at 150 A and a reverse leakage current of 6 mA at its maximum reverse voltage. Operating across a junction temperature range of -40°C to 180°C, this device is suitable for industrial applications including power supplies, motor drives, and welding equipment. The DSAI75-16B offers standard recovery characteristics with a time greater than 500 ns.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Chassis, Stud Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Avalanche |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 110A |
| Supplier Device Package | DO-203AB |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.17 V @ 150 A |
| Current - Reverse Leakage @ Vr | 6 mA @ 1600 V |
