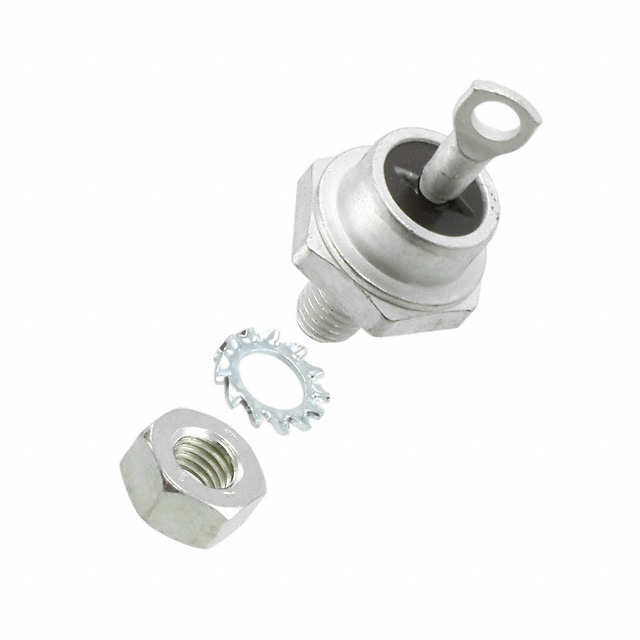

DSAI35-16A
DIODE AVAL 1.6KV 49A DO203ABManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS DSAI35-16A is a high-voltage avalanche diode designed for demanding power applications. This component features a robust DO-203AB (DO-5) stud mount package for efficient thermal management in chassis-mounted configurations. With a maximum DC reverse voltage rating of 1600V and an average rectified current capability of 49A, the DSAI35-16A is suitable for power rectification and high-voltage switching circuits. The device exhibits a forward voltage drop of 1.55V at 150A, with a reverse leakage current of 4mA at its maximum rated voltage. Its avalanche technology provides enhanced surge protection. Operating junction temperatures range from -40°C to 180°C. This diode is utilized in power supplies, industrial motor control, and high-voltage DC transmission systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | DO-203AB, DO-5, Stud |
| Mounting Type | Chassis, Stud Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Avalanche |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 49A |
| Supplier Device Package | DO-203AB |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 150 A |
| Current - Reverse Leakage @ Vr | 4 mA @ 1600 V |
