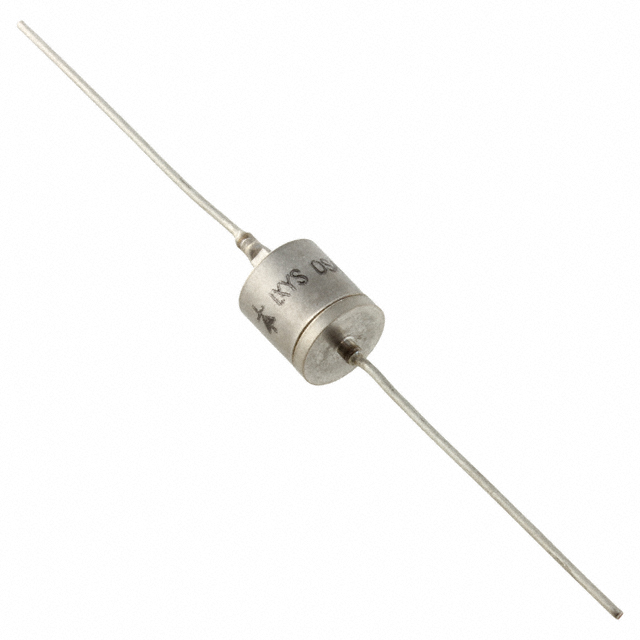

DS2-12A
DIODE GEN PURP 1.2KV 3.6A AXIALManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
The IXYS DS2-12A is a general-purpose diode featuring a 1200V reverse voltage rating and an average rectified current capability of 3.6A. This through-hole component utilizes standard recovery technology, with a speed characteristic of >500ns for Io > 200mA. Its forward voltage drop is specified at a maximum of 1.25V at 7A. The reverse leakage current is 2mA at its maximum reverse voltage of 1200V. The operating junction temperature range is -40°C to 180°C. This diode is commonly found in power supply circuits and general rectification applications within industrial and consumer electronics. The device is packaged in a standard axial configuration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3.6A |
| Supplier Device Package | Axial |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 7 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 1200 V |
