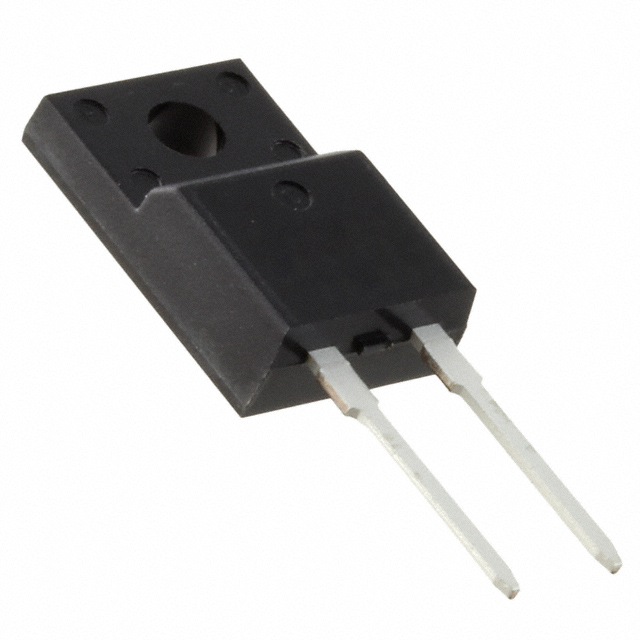

DPG15I400PM
DIODE GP 400V 15A TO220ACFPManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS HiPerFRED™ DPG15I400PM is a fast recovery diode with a maximum DC reverse voltage of 400V and an average rectified current (Io) of 15A. This component features a forward voltage (Vf) of 1.39V at 15A and a reverse leakage current of 1 µA at 400V. The reverse recovery time (trr) is rated at 45 ns, indicating its suitability for high-frequency switching applications. Engineered with a standard recovery speed, this device is designed for environments requiring efficient power conversion. It is housed in a TO-220ACFP package, suitable for through-hole mounting. The operating junction temperature range is -55°C to 175°C. This diode finds application in power supplies, motor control, and lighting systems.
Additional Information
Series: HiPerFRED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-220ACFP |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.39 V @ 15 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
