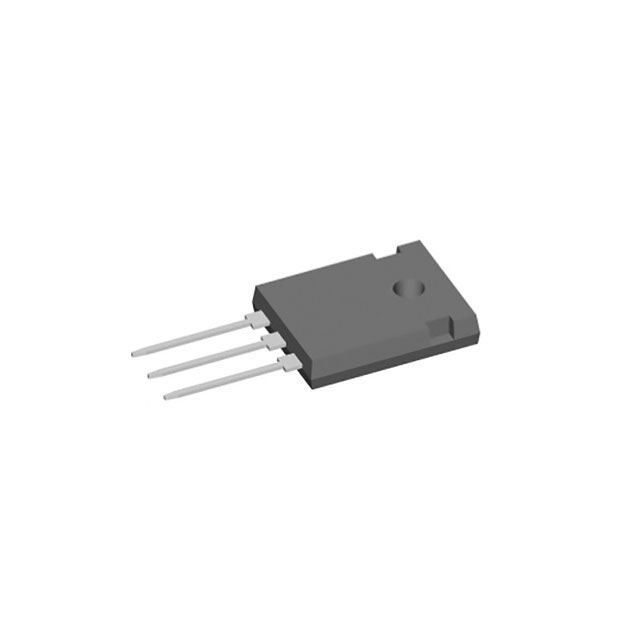

DMA10P1600HR
DIODE GEN PURP 1.6KV 10A ISO247Manufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS DMA10P1600HR is a general-purpose diode engineered for demanding applications. This component features a DC reverse voltage rating of 1600 V and an average rectified current capacity of 10 A. The forward voltage drop is specified at a maximum of 1.23 V at 10 A. With a reverse leakage current of only 10 µA at 1600 V, it offers efficient operation. The diode exhibits a standard recovery speed exceeding 500 ns and a junction operating temperature range from -55°C to 175°C. Housed in an ISO247 package, this through-hole device is suitable for power electronics, industrial motor control, and high-voltage power supplies. The capacitance at 400V and 1MHz is 4pF.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 60 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 400V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | ISO247 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.23 V @ 10 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1600 V |
