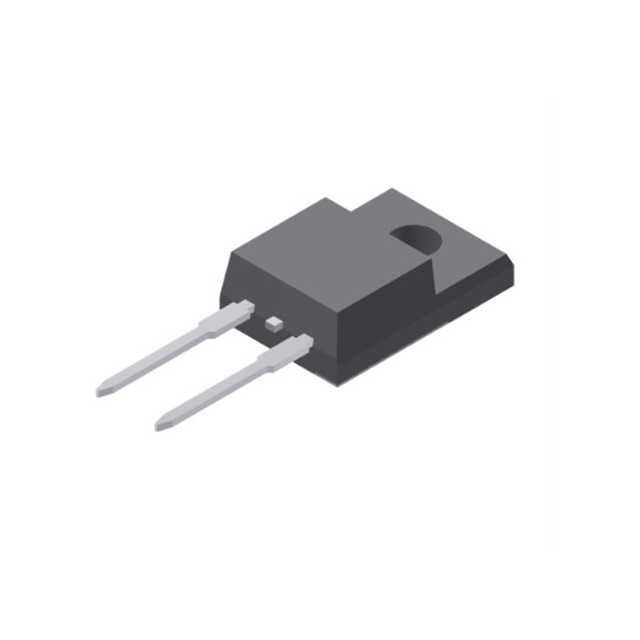

DHG5I600PM
DIODE GEN PURP 600V 5A TO220ACFPManufacturer: IXYS
Categories: Single Diodes
Quality Control: Learn More
IXYS DHG5I600PM is a general-purpose diode with a 600V reverse voltage and 5A average rectified current. This through-hole component, packaged in a TO-220ACFP, features a forward voltage of 2.2V at 5A and a reverse leakage current of 10 µA at 600V. The device operates across a junction temperature range of -55°C to 150°C, with a reverse recovery time of 35 ns, classifying it as a fast recovery diode. Its isolated tab in the TO-220-2 Full Pack case facilitates thermal management. This diode is commonly utilized in power supply rectification, motor control, and general power switching applications across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | TO-220ACFP |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
